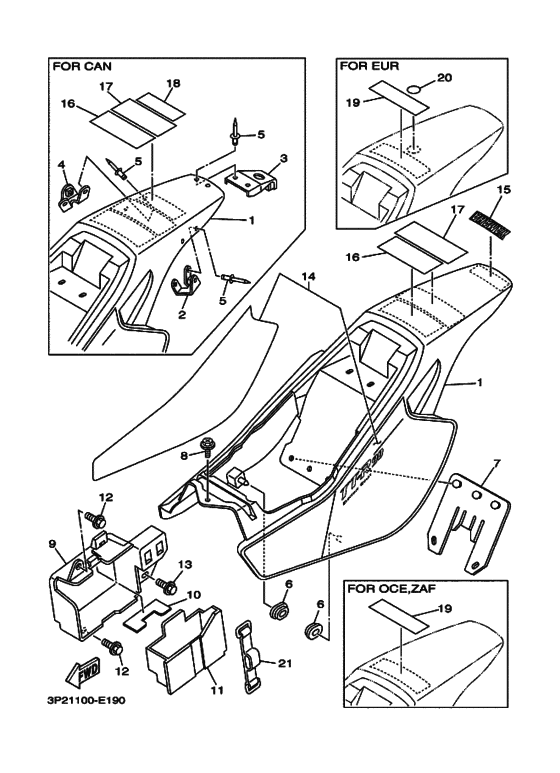

Side cover Diagram Yamaha TTR90 TT-R90
- Year
- 2007
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 3P27
- Sales region
- Europe (010)
- Engine Capacity
- 90
- Color Variant
- A
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HN-21711-10-00
Cover, Side 1
|
5HN-21711-10-00 |
— | ||
|
2
|
2
21W-2172K-00-00
Bracket 1
|
21W-2172K-00-00 |
— | ||
|
3
|
3
21W-2172L-00-00 Bracket 2 |
21W-2172L-00-00 |
US $9.38 |
||
|
4
|
4
21W-2172M-00-00 Bracket 3 |
21W-2172M-00-00 |
US $4.79 |
||
|
5
|
5
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
6
|
6
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
7
|
7
4V0-21621-00-00
Flap
|
4V0-21621-00-00 |
— | ||
|
8
|
8
90159-06078-00 Screw, With Washer |
90159-06078-00 |
from US $1.77 |
||
|
9
|
9
5HN-2177G-00-00 Box, Battery |
5HN-2177G-00-00 |
US $24.12 |
||
|
10
|
10
5HN-21746-00-00 Damper |
5HN-21746-00-00 |
from US $1.28 |
||
|
11
|
11
5HN-2172W-00-00 Cover |
5HN-2172W-00-00 |
from US $8.78 |
||
|
12
|
12
901-19060-94-00
Bolt, With Washer
|
901-19060-94-00 |
— | ||
| replacement | |||||
|
12
|
12
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
13
|
13
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
14
|
14
5HN-2173L-70-00 Graphic Set 1 |
5HN-2173L-70-00 |
US $235.40 |
||
|
15
|
15
4ES-2153E-01-00
Emblem, Yamaha
|
4ES-2153E-01-00 |
— | ||
| replacement | |||||
|
15
|
15
4ES-2153E-02-00 Emblem, Yamaha |
4ES-2153E-02-00 |
from US $6.51 |
||
|
16
|
16
3PT-2118K-A0-00 Label, Caution |
3PT-2118K-A0-00 |
from US $3.89 |
||
| replacements | |||||
|
16
|
16
3PT-2118K-A1-00 Label, Caution |
3PT-2118K-A1-00 |
from US $4.82 |
||
|
16
|
16
3PT-2118K-A2-00 |
3PT-2118K-A2-00 |
from US $4.96 |
||
|
17
|
17
3PT-2118K-B0-00 Label, Caution |
3PT-2118K-B0-00 |
US $4.96 |
||
|
18
|
18
3PT-2416E-10-00 Label, Caution Canada |
3PT-2416E-10-00 |
US $1.56 |
||
|
21
|
21
34M-82131-00-00 Band, Battery |
34M-82131-00-00 |
from US $6.52 |
||
| replacement | |||||
|
21
|
21
22F-82131-00-00 Band, Battery |
22F-82131-00-00 |
from US $15.44 |
||
