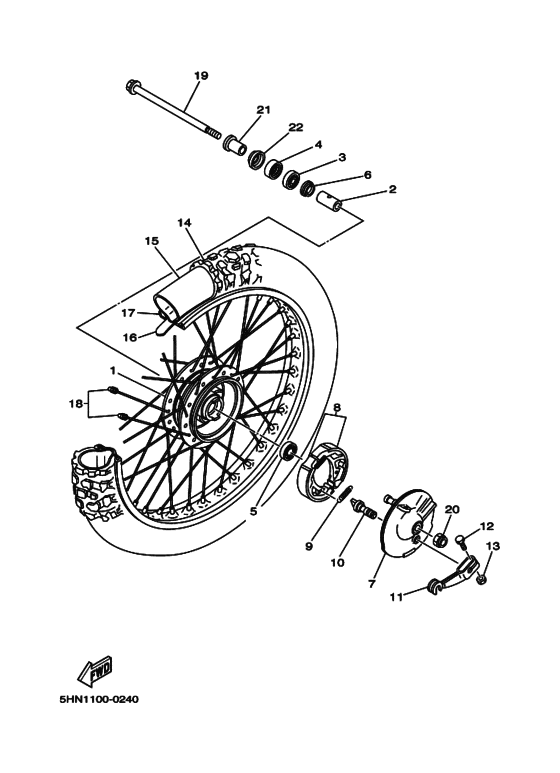

Front wheel Diagram Yamaha TTR90 TT-R90
- Year
- 2000
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5HN3
- Sales region
- Japan (090)
- Engine Capacity
- 90
- Color Variant
- A
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
451-25111-00-35 Hub, FrontＨＵＢ， ＦＲＯＮＴ; ＳＬ |
451-25111-00-35 |
from US $156.12 |
||
|
2
|
2
90560-10103-00 SpacerＳＰＡＣＥＲ; |
90560-10103-00 |
from US $5.81 |
||
|
3
|
3
93306-20004-00 BearingＢＥＡＲＩＮＧ ; Ｂ６２００ |
93306-20004-00 |
from US $12.89 |
||
| replacement | |||||
|
3
|
3
93306-20009-00 Bearing (3R0)ＢＥＡＲＩＮＧ ; Ｂ６２００ |
93306-20009-00 |
from US $12.62 |
||
|
4
|
4
93106-17006-00 Oil SealＯＩＬ ＳＥＡＬ; |
93106-17006-00 |
from US $4.68 |
||
|
5
|
5
93306-20009-00 Bearing (3R0)ＢＥＡＲＩＮＧ ; Ｂ６２００ＲＳ |
93306-20009-00 |
from US $12.62 |
||
|
6
|
6
2E9-25116-00-00 Flange, Spacer 2ＦＬＡＮＧＥ， ＳＰＡＣＥＲ ２; |
2E9-25116-00-00 |
from US $3.47 |
||
|
7
|
7
3R0-25121-00-35 Plate, Brake ShoeＰＬＡＴＥ， ＢＲＡＫＥ ＳＨＯＥ; ＳＬ |
3R0-25121-00-35 |
from US $98.42 |
||
|
8
|
8
3EC-W2535-00-00 Brake Shoe KitＢＲＡＫＥ ＳＨＯＥ ＳＥＴ; |
3EC-W2535-00-00 |
from US $28.96 |
||
| replacement | |||||
|
8
|
8
3EC-W253A-00-00 Brake Shoe KitＢＲＡＫＥ ＳＨＯＥ ＳＥＴ; |
3EC-W253A-00-00 |
from US $31.45 |
||
|
9
|
9
90506-14081-00 Spring, TensionＳＰＲＩＮＧ， ＴＥＮＳＩＯＮ; |
90506-14081-00 |
from US $1.35 |
||
|
10
|
10
1YT-25351-00-00 CamshaftＣＡＭＳＨＡＦＴ; |
1YT-25351-00-00 |
US $27.76 |
||
|
11
|
11
451-25155-00-00 Lever, Camshaft 1ＬＥＶＥＲ， ＣＡＭＳＨＡＦＴ １; |
451-25155-00-00 |
from US $19.41 |
||
|
12
|
12
90101-06291-00 BoltＢＯＬＴ; |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90101-06M27-00 BoltＢＯＬＴ; |
90101-06M27-00 |
from US $1.52 |
||
|
13
|
13
953-07066-00-00
Nut
ＮＵＴ; |
953-07066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95317-06600-00 Nut(6Ta)ＮＵＴ; |
95317-06600-00 |
from US $1.21 |
||
|
14
|
14
94125-141A6-00 Tire (2.50-14 2Pr)ＴＩＲＥ ; ２．５０−１４ |
94125-141A6-00 |
US $66.46 |
||
|
15
|
15
94225-14215-00 Tube (2.50-14 Tr4)ＴＵＢＥ ; ２．５０−１４ |
94225-14215-00 |
US $28.62 |
||
| replacement | |||||
|
15
|
15
94220-14143-00 Tube (2.50-14 Tr4)ＴＵＢＥ ; ２．５０−１４ |
94220-14143-00 |
US $39.22 |
||
|
16
|
16
94325-14129-00 Band, Rim (1.60-14)ＢＡＮＤ， ＲＩＭ ; ２．５０−１４ |
94325-14129-00 |
from US $4.53 |
||
| replacement | |||||
|
16
|
16
94327-14076-00 Band, Rim (1.60-14)ＢＡＮＤ， ＲＩＭ ; ２．５０−１４ |
94327-14076-00 |
from US $4.53 |
||
|
17
|
17
94414-14227-00 Rim (1.40-14)ＲＩＭ ; １．４０−１４ |
94414-14227-00 |
from US $64.80 |
||
|
18
|
18
3R0-25104-00-00 Spoke Set, FrontＳＰＯＫＥ ＳＥＴ， ＦＲＯＮＴ; |
3R0-25104-00-00 |
from US $41.86 |
||
|
19
|
19
5HN-25181-00-00 Axle, WheelＡＸＬＥ， ＷＨＥＥＬ; |
5HN-25181-00-00 |
from US $8.44 |
||
| replacement | |||||
|
19
|
19
5HN-25181-01-00 Axle, WheelＡＸＬＥ， ＷＨＥＥＬ; |
5HN-25181-01-00 |
from US $14.04 |
||
|
20
|
20
95617-10100-00 Nut, UＮＵＴ， Ｕ; |
95617-10100-00 |
from US $4.11 |
||
|
21
|
21
90387-10744-00 CollarＣＯＬＬＡＲ; |
90387-10744-00 |
from US $8.22 |
||
|
22
|
22
451-25118-00-00 Cover, Hub DustＣＯＶＥＲ， ＨＵＢ ＤＵＳＴ; |
451-25118-00-00 |
from US $11.05 |
||
