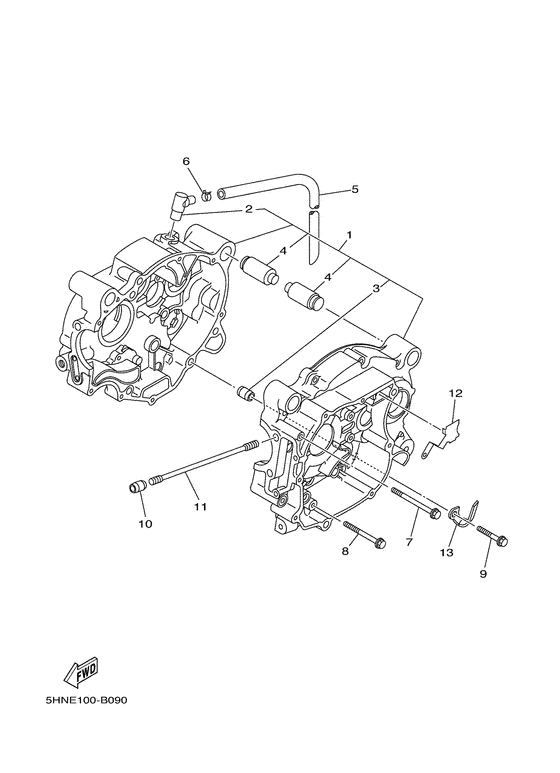

Crankcase Diagram Yamaha TTR90 TT-R90
- Year
- 2005
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5HNT
- Sales region
- USA (010)
- Engine Capacity
- 90
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5HN-15100-10-00 Crankcase Assy |
5HN-15100-10-00 |
US $666.50 |
||
|
02
|
02
4GL-15371-00-00 Breather |
4GL-15371-00-00 |
from US $27.06 |
||
| replacement | |||||
|
02
|
02
4GL-15371-01-00 Breather |
4GL-15371-01-00 |
from US $27.06 |
||
|
03
|
03
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
04
|
04
4GL-15316-00-00 Damper 1 |
4GL-15316-00-00 |
from US $9.92 |
||
| replacement | |||||
|
04
|
04
4S9-E5316-00-00 DAMPER, ENGINE MOUNT |
4S9-E5316-00-00 |
from US $8.93 |
||
|
05
|
05
90445-12002-00 Hose (L300) |
90445-12002-00 |
US $9.50 |
||
|
06
|
06
904-67130-64-00 Clip |
904-67130-64-00 |
from US $1.42 |
||
| replacement | |||||
|
06
|
06
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.52 |
||
|
07
|
07
90105-064A6-00 Bolt, Flange |
90105-064A6-00 |
from US $9.35 |
||
| replacement | |||||
|
07
|
07
95814-06075-00
Bolt, Flange(3Gm)
|
95814-06075-00 |
— | ||
|
08
|
08
950-27060-60-00
Bolt, Flange
|
950-27060-60-00 |
— | ||
| replacement | |||||
|
08
|
08
95022-06060-00 Bolt, Flange |
95022-06060-00 |
from US $1.66 |
||
|
09
|
09
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
10
|
10
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
11
|
11
90116-08573-00 Bolt, Stud |
90116-08573-00 |
from US $5.14 |
||
|
12
|
12
5HN-15191-00-00 Plate |
5HN-15191-00-00 |
US $7.85 |
||
|
13
|
13
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
