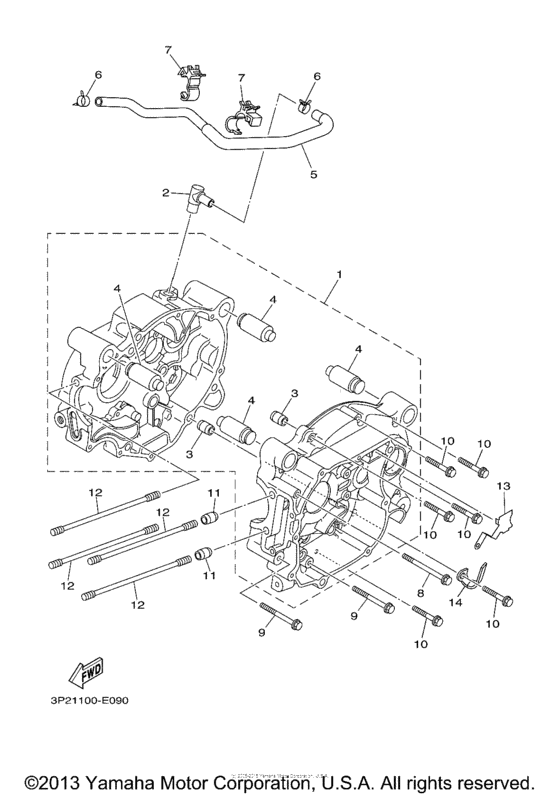

Crankcase Diagram Yamaha TTR90 TT-R90
- Year
- 2006
- Sales region
- USA
- Engine Capacity
- 90
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HN-15100-11-00 Crankcase Assy |
5HN-15100-11-00 |
US $673.45 |
||
|
2
|
2
4GL-15371-01-00 Breather |
4GL-15371-01-00 |
from US $27.06 |
||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
4
|
4
4GL-15316-00-00 Damper 1 |
4GL-15316-00-00 |
from US $9.92 |
||
| replacement | |||||
|
4
|
4
4S9-E5316-00-00 DAMPER, ENGINE MOUNT |
4S9-E5316-00-00 |
from US $8.93 |
||
|
5
|
5
3P2-11166-00-00 Pipe, Breather 1 |
3P2-11166-00-00 |
US $31.25 |
||
|
6
|
6
904-67130-64-00 Clip |
904-67130-64-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.52 |
||
|
7
|
7
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.81 |
||
|
8
|
8
90105-064A6-00 Bolt, Flange |
90105-064A6-00 |
from US $9.35 |
||
| replacement | |||||
|
8
|
8
95814-06075-00
Bolt, Flange(3Gm)
|
95814-06075-00 |
— | ||
|
9
|
9
950-27060-60-00
Bolt, Flange
|
950-27060-60-00 |
— | ||
| replacement | |||||
|
9
|
9
95022-06060-00 Bolt, Flange |
95022-06060-00 |
from US $1.66 |
||
|
10
|
10
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
11
|
11
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
12
|
12
90116-08573-00 Bolt, Stud |
90116-08573-00 |
from US $5.14 |
||
|
13
|
13
5HN-15191-00-00 Plate |
5HN-15191-00-00 |
US $7.85 |
||
|
14
|
14
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
