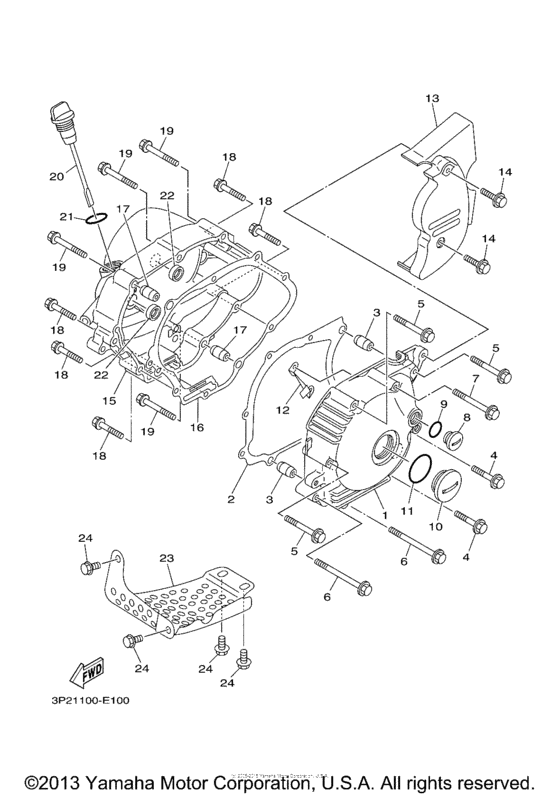

Crankcase cover (1) Diagram Yamaha TTR90 TT-R90
- Year
- 2006
- Sales region
- USA
- Engine Capacity
- 90
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HN-15411-30-00 Cover, Crankcase 1 |
5HN-15411-30-00 |
US $131.47 |
||
|
2
|
2
5HN-15451-01-00 Gasket, Crankcase Cover 1 |
5HN-15451-01-00 |
from US $11.33 |
||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
4
|
4
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
5
|
5
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
| replacement | |||||
|
5
|
5
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.89 |
||
|
6
|
6
95027-06080-00 Bolt, Flange |
95027-06080-00 |
from US $1.42 |
||
|
7
|
7
950-27060-60-00
Bolt, Flange
|
950-27060-60-00 |
— | ||
| replacement | |||||
|
7
|
7
95022-06060-00 Bolt, Flange |
95022-06060-00 |
from US $1.66 |
||
|
8
|
8
90340-14120-00 Plug, Straight Screw |
90340-14120-00 |
from US $10.34 |
||
|
9
|
9
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.94 |
||
|
10
|
10
90340-32126-00 Plug, Straight Screw |
90340-32126-00 |
from US $17 |
||
|
11
|
11
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.94 |
||
|
12
|
12
4NM-15113-00-00 Plate |
4NM-15113-00-00 |
from US $4.45 |
||
|
13
|
13
5HN-15418-10-00 Cover, Chain Case |
5HN-15418-10-00 |
US $41 |
||
|
14
|
14
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
15
|
15
5HN-15421-00-00 Cover, Crankcase 2 |
5HN-15421-00-00 |
US $162.70 |
||
|
16
|
16
5HN-15461-00-00 Gasket, Crankcase Cover 2 |
5HN-15461-00-00 |
from US $10.77 |
||
|
17
|
17
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
18
|
18
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
19
|
19
950-27060-50-00
Bolt, Flange
|
950-27060-50-00 |
— | ||
| replacement | |||||
|
19
|
19
90105-06798-00 Bolt, Flange |
90105-06798-00 |
from US $3.89 |
||
|
20
|
20
55X-15362-04-00 Plug, Oil Level |
55X-15362-04-00 |
from US $11.76 |
||
| replacement | |||||
|
20
|
20
55X-15362-10-00 Plug, Oil Level |
55X-15362-10-00 |
from US $8.96 |
||
|
21
|
21
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.81 |
||
|
22
|
22
93101-10142-00 Oil Seal |
93101-10142-00 |
from US $6.94 |
||
|
23
|
23
4GL-15436-01-00 Cover, Starting Motor |
4GL-15436-01-00 |
from US $39.30 |
||
|
24
|
24
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
24
|
24
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
24
|
24
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
