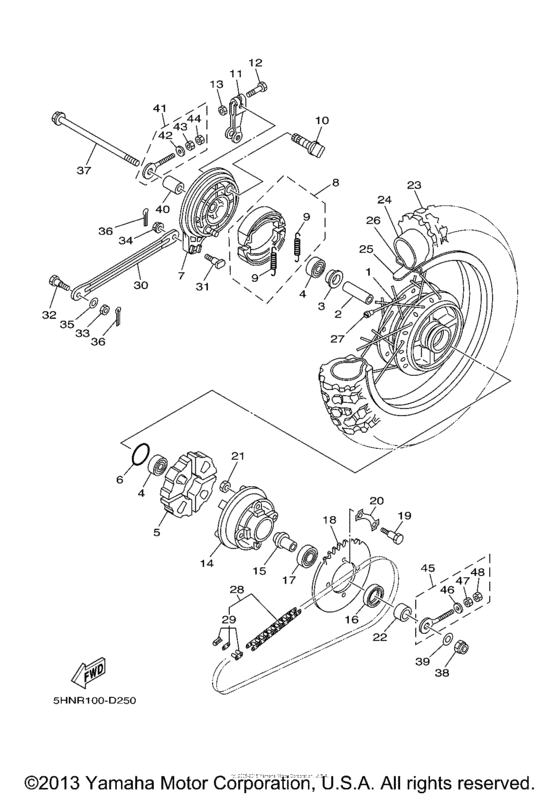

Rear wheel Diagram Yamaha TTR90 TT-R90
- Year
- 2006
- Sales region
- USA
- Engine Capacity
- 90
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21W-25311-00-35 Hub, RearSL |
21W-25311-00-35 |
from US $94.09 |
||
|
2
|
2
90560-12145-00 Spacer |
90560-12145-00 |
from US $8.22 |
||
|
3
|
3
102-25315-00-00 Flange, Spacer |
102-25315-00-00 |
from US $2.55 |
||
| replacement | |||||
|
3
|
3
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
4
|
4
93306-30111-00 Bearing |
93306-30111-00 |
from US $22.39 |
||
|
5
|
5
21W-25364-00-00 Damper |
21W-25364-00-00 |
from US $11.79 |
||
| replacement | |||||
|
5
|
5
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $5.40 |
||
|
6
|
6
93210-41041-00 O-Ring |
93210-41041-00 |
from US $1.81 |
||
|
7
|
7
31J-25321-20-35
Plate, Brake Shoe
SL |
31J-25321-20-35 |
— | ||
| replacement | |||||
|
7
|
7
31J-25321-10-00
Plate, Brake Shoe
SL |
31J-25321-10-00 |
— | ||
|
8
|
8
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
9
|
9
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
10
|
10
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
10
|
10
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
11
|
11
538-25355-00-00 Lever, Camshaft |
538-25355-00-00 |
from US $8.42 |
||
|
12
|
12
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
13
|
13
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
14
|
14
296-25366-01-35 Clutch, HubSL |
296-25366-01-35 |
from US $73.87 |
||
|
15
|
15
21W-25387-00-00 Axle, Sprocket |
21W-25387-00-00 |
from US $15.02 |
||
|
16
|
16
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.21 |
||
|
17
|
17
93306-00416-00 Bearing |
93306-00416-00 |
from US $14.70 |
||
| replacement | |||||
|
17
|
17
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.70 |
||
|
18
|
18
5A7-25435-01-00 Sprocket, Driven (35T)35T |
5A7-25435-01-00 |
from US $31.55 |
||
|
19
|
19
90101-08672-00 Bolt |
90101-08672-00 |
from US $1.70 |
||
|
20
|
20
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
21
|
21
90170-08366-00 Nut, Spec''l Shape (30)30 |
90170-08366-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90179-08639-00 Nut, Spec''l Shape (30)30 |
90179-08639-00 |
from US $1.81 |
||
|
22
|
22
90387-207G3-00 Collar |
90387-207G3-00 |
from US $7.65 |
||
|
23
|
23
941-30121-A7-00 Tire (3.00-12 2Pr)3.00-12 2PR CHENG SHIN |
941-30121-A7-00 |
US $61.49 |
||
|
24
|
24
94227-12216-00 Tube (3.00-12 Tr4)2.75/3.00-12 TR4 CHENG SHIN |
94227-12216-00 |
US $34.81 |
||
| replacement | |||||
|
24
|
24
94230-12208-00 Tube (3.00-12 Tr4)2.75/3.00-12 TR4 CHENG SHIN |
94230-12208-00 |
US $47.72 |
||
|
25
|
25
94330-12130-00 Band, Rim (1.60-12)3.00-12 CHENG SHIN |
94330-12130-00 |
from US $5.10 |
||
| replacement | |||||
|
25
|
25
94330-12100-00 Band, Rim (1.60-12)3.00-12 CHENG SHIN |
94330-12100-00 |
from US $5.10 |
||
|
26
|
26
94416-12002-00 Rim (1.60-12)1.60-12 |
94416-12002-00 |
from US $70.60 |
||
|
27
|
27
21W-25304-00-00 Spoke Set, Rear |
21W-25304-00-00 |
from US $41.86 |
||
|
28
|
28
94561-66086-00 Chain |
94561-66086-00 |
US $21.29 |
||
| replacement | |||||
|
28
|
28
9Y5-61520-85-00 Chain |
9Y5-61520-85-00 |
US $21.29 |
||
|
29
|
29
94661-66001-00 Joint, Chain(Did 420M)420M |
94661-66001-00 |
from US $2.50 |
||
| replacement | |||||
|
29
|
29
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
|
30
|
30
4BC-25371-00-00 Bar, Tension |
4BC-25371-00-00 |
from US $20.41 |
||
|
31
|
31
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
31
|
31
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
32
|
32
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
33
|
33
95307-08700-00 Nut |
95307-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
33
|
33
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.81 |
||
|
34
|
34
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
34
|
34
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
35
|
35
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
36
|
36
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
36
|
36
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
36
|
36
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
37
|
37
5HN-25381-00-00 Axle, Wheel |
5HN-25381-00-00 |
from US $26.22 |
||
|
38
|
38
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.94 |
||
|
39
|
39
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.81 |
||
|
40
|
40
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
41
|
41
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
42
|
42
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
43
|
43
90170-06184-00 Nut |
90170-06184-00 |
from US $1.70 |
||
| replacement | |||||
|
43
|
43
90170-06809-00 Nut |
90170-06809-00 |
from US $1.70 |
||
|
44
|
44
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
44
|
44
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
45
|
45
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $12.35 |
||
|
46
|
46
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
47
|
47
90170-06184-00 Nut |
90170-06184-00 |
from US $1.70 |
||
| replacement | |||||
|
47
|
47
90170-06809-00 Nut |
90170-06809-00 |
from US $1.70 |
||
|
48
|
48
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
48
|
48
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
