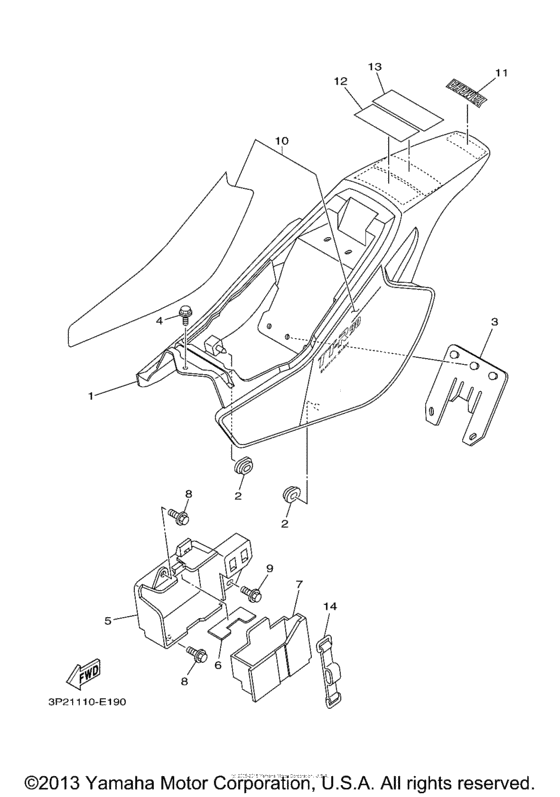

Side cover Diagram Yamaha TTR90 TT-R90
- Year
- 2006
- Sales region
- USA
- Engine Capacity
- 90
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HN-21711-00-00 Cover, Side 1 |
5HN-21711-00-00 |
from US $93.40 |
||
|
2
|
2
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
3
|
3
4V0-21621-00-00
Flap
|
4V0-21621-00-00 |
— | ||
|
4
|
4
90159-06078-00 Screw, With Washer |
90159-06078-00 |
from US $1.77 |
||
|
5
|
5
5HN-2177G-00-00 Box, Battery |
5HN-2177G-00-00 |
US $24.12 |
||
|
6
|
6
5HN-21746-00-00 Damper |
5HN-21746-00-00 |
from US $1.28 |
||
|
7
|
7
5HN-2172W-00-00 Cover |
5HN-2172W-00-00 |
from US $8.78 |
||
|
8
|
8
901-19060-94-00
Bolt, With Washer
|
901-19060-94-00 |
— | ||
| replacement | |||||
|
8
|
8
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
9
|
9
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
10
|
10
5HN-2173L-70-00 Graphic Set 1 |
5HN-2173L-70-00 |
US $235.40 |
||
|
11
|
11
4ES-2153E-01-00
Emblem, Yamaha
|
4ES-2153E-01-00 |
— | ||
| replacement | |||||
|
11
|
11
4ES-2153E-02-00 Emblem, Yamaha |
4ES-2153E-02-00 |
from US $6.51 |
||
|
12
|
12
3PT-2118K-A0-00 Label, Caution |
3PT-2118K-A0-00 |
from US $3.89 |
||
| replacements | |||||
|
12
|
12
3PT-2118K-A1-00 Label, Caution |
3PT-2118K-A1-00 |
from US $4.82 |
||
|
12
|
12
3PT-2118K-A2-00 |
3PT-2118K-A2-00 |
from US $4.96 |
||
|
13
|
13
3P2-2179C-00-00 Plate, Epa |
3P2-2179C-00-00 |
US $2.77 |
||
|
14
|
14
34M-82131-00-00 Band, Battery |
34M-82131-00-00 |
from US $6.52 |
||
| replacement | |||||
|
14
|
14
22F-82131-00-00 Band, Battery |
22F-82131-00-00 |
from US $15.44 |
||
