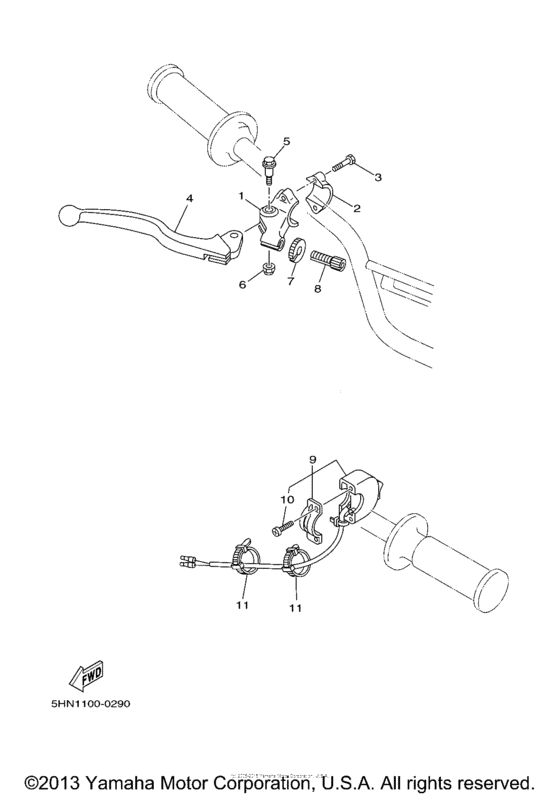

Handle switch & lever Diagram Yamaha TTR90 TT-R90
- Year
- 2001
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38V-82921-00-00 Holder, Lever 25HN5 |
38V-82921-00-00 |
from US $24.23 |
||
|
2
|
2
38V-82913-00-00 Holder, Lever Lower 15HN5 |
38V-82913-00-00 |
from US $5.06 |
||
|
3
|
3
97007-05016-00 Bolt, Hex. Head5HN5 |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
3
|
3
97017-05016-00 Bolt, Hex. Head5HN5 |
97017-05016-00 |
from US $2.41 |
||
|
4
|
4
23X-83922-00-00
Lever 2
5HN5 |
23X-83922-00-00 |
— | ||
| replacement | |||||
|
4
|
4
23X-83922-01-00 Lever 25HN5 |
23X-83922-01-00 |
from US $20.54 |
||
|
5
|
5
90109-06799-00 Bolt (2Yk1)5HN5 |
90109-06799-00 |
from US $3.60 |
||
|
6
|
6
956-07061-00-00
Nut, U
5HN5 |
956-07061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U5HN5 |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
901-79081-48-00
Nut
5HN5 |
901-79081-48-00 |
— | ||
| replacement | |||||
|
7
|
7
901-79080-30-00 Nut5HN5 |
901-79080-30-00 |
from US $6.94 |
||
|
8
|
8
90123-08013-00 Bolt5HN5 |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
8
|
8
901-23080-46-00 Bolt5HN5 |
901-23080-46-00 |
from US $3.74 |
||
|
8
|
8
901-23080-02-00 Bolt5HN5 |
901-23080-02-00 |
from US $3.74 |
||
|
9
|
9
5HN-83976-00-00 Switch, Handle 15HN5 |
5HN-83976-00-00 |
from US $77.37 |
||
|
10
|
10
985-07040-14-00 Screw, Pan Head5HN5 |
985-07040-14-00 |
from US $1.42 |
||
|
11
|
11
437-83936-01-00 Band, Switch Cord5HN5 |
437-83936-01-00 |
from US $1.81 |
||
