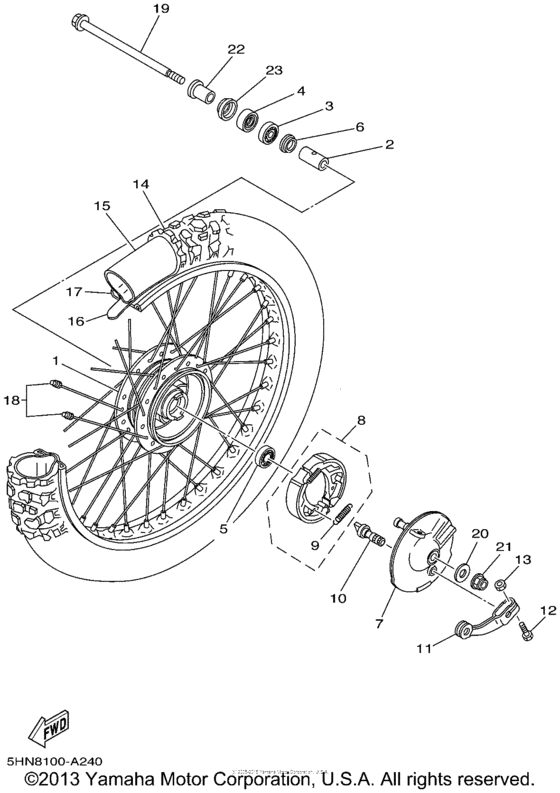

Front wheel Diagram Yamaha TTR90 TT-R90
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
451-25111-00-35 Hub, Front |
451-25111-00-35 |
from US $156.12 |
||
|
2
|
2
90560-10103-00 Spacer5HN8 |
90560-10103-00 |
from US $5.81 |
||
|
3
|
3
93306-20004-00 Bearing5HN8 |
93306-20004-00 |
from US $12.89 |
||
| replacement | |||||
|
3
|
3
93306-20009-00 Bearing (3R0)5HN8 |
93306-20009-00 |
from US $12.62 |
||
|
4
|
4
93106-17006-00 Oil Seal5HN8 |
93106-17006-00 |
from US $4.68 |
||
|
5
|
5
93306-20009-00 Bearing (3R0)5HN8 |
93306-20009-00 |
from US $12.62 |
||
|
6
|
6
2E9-25116-00-00 Flange, Spacer 25HN8 |
2E9-25116-00-00 |
from US $3.47 |
||
|
7
|
7
3R0-25121-00-35 Plate, Brake Shoe |
3R0-25121-00-35 |
from US $98.42 |
||
|
8
|
8
3EC-W253A-00-00 Brake Shoe Kit5HN8 |
3EC-W253A-00-00 |
from US $31.45 |
||
|
9
|
9
90506-14081-00 Spring, Tension5HN8 |
90506-14081-00 |
from US $1.35 |
||
|
10
|
10
1YT-25351-00-00 Camshaft5HN8 |
1YT-25351-00-00 |
US $27.76 |
||
|
11
|
11
451-25155-00-00 Lever, Camshaft 15HN8 |
451-25155-00-00 |
from US $19.41 |
||
|
12
|
12
90101-06291-00 Bolt5HN8 |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90101-06M27-00 Bolt5HN8 |
90101-06M27-00 |
from US $1.52 |
||
|
13
|
13
953-07066-00-00
Nut
5HN8 |
953-07066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95317-06600-00 Nut(6Ta)5HN8 |
95317-06600-00 |
from US $1.21 |
||
|
14
|
14
94125-141A6-00 Tire (2.50-14 2Pr)2.50-14 2PR CHENGSHIN5HN8 |
94125-141A6-00 |
US $66.46 |
||
|
15
|
15
94225-14215-00 Tube (2.50-14 Tr4)2.25/2.50-14 TR4 CHENGSHIN5HN8 |
94225-14215-00 |
US $28.62 |
||
| replacement | |||||
|
15
|
15
94220-14143-00 Tube (2.50-14 Tr4)2.25/2.50-14 TR4 CHENGSHIN5HN8 |
94220-14143-00 |
US $39.22 |
||
|
16
|
16
94325-14129-00 Band, Rim (1.60-14)2.50-14 CHENGSHIN5HN8 |
94325-14129-00 |
from US $4.53 |
||
| replacement | |||||
|
16
|
16
94327-14076-00 Band, Rim (1.60-14)2.50-14 CHENGSHIN5HN8 |
94327-14076-00 |
from US $4.53 |
||
|
17
|
17
94414-14227-00 Rim (1.40-14)1.40-14 5HN8 |
94414-14227-00 |
from US $64.80 |
||
|
18
|
18
3R0-25104-00-00 Spoke Set, Front5HN8 |
3R0-25104-00-00 |
from US $41.86 |
||
|
19
|
19
5HN-25181-00-00 Axle, Wheel5HN8 |
5HN-25181-00-00 |
from US $8.44 |
||
| replacement | |||||
|
19
|
19
5HN-25181-01-00 Axle, Wheel5HN8 |
5HN-25181-01-00 |
from US $14.04 |
||
|
20
|
20
92907-10200-00 Washer, Plain5HN8 |
92907-10200-00 |
from US $0.90 |
||
|
21
|
21
956-07102-00-00 Nut, U Flange5HN8 |
956-07102-00-00 |
from US $5.69 |
||
|
22
|
22
90387-10744-00 Collar5HN8 |
90387-10744-00 |
from US $8.22 |
||
|
23
|
23
451-25118-00-00 Cover, Hub Dust5HN8 |
451-25118-00-00 |
from US $11.05 |
||
