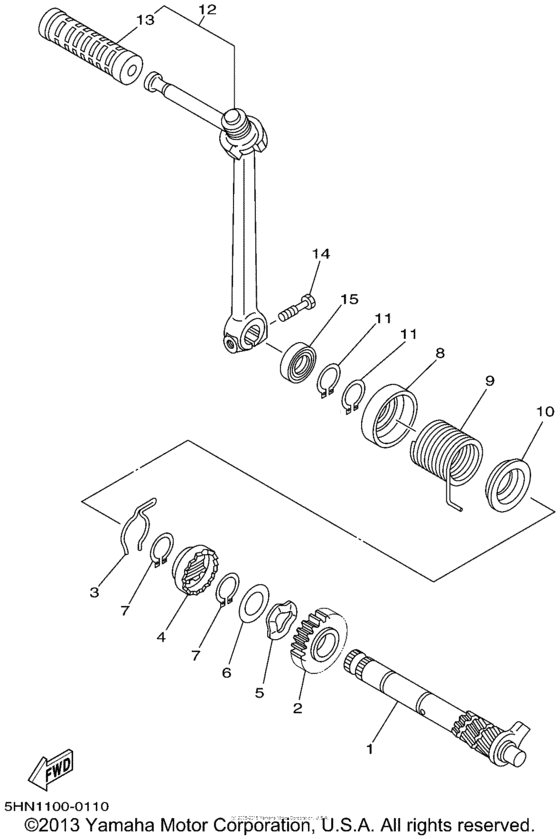

Starter Diagram Yamaha TTR90 TT-R90
- Year
- 2002
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22F-15660-00-00 Kick Axle Assy5HN8 |
22F-15660-00-00 |
from US $45.92 |
||
|
2
|
2
29F-15641-00-00
Gear, Kick
5HN8 |
29F-15641-00-00 |
— | ||
|
3
|
3
90468-23194-00 Clip5HN8 |
90468-23194-00 |
from US $1.84 |
||
|
4
|
4
296-15671-00-00 Wheel, Ratchet5HN8 |
296-15671-00-00 |
from US $27.91 |
||
|
5
|
5
90206-19027-00 Washer, Wave5HN8 |
90206-19027-00 |
from US $1.84 |
||
|
6
|
6
296-15644-00-00 Shim5HN8 |
296-15644-00-00 |
from US $3.40 |
||
|
7
|
7
99009-19400-00 Circlip5HN8 |
99009-19400-00 |
from US $1.56 |
||
|
8
|
8
22F-15676-00-00 Cover, Spring5HN8 |
22F-15676-00-00 |
from US $5.10 |
||
|
9
|
9
90508-263A8-00 Spring, Torsion5HN8 |
90508-263A8-00 |
from US $6.66 |
||
|
10
|
10
22F-15664-00-00 Guide, Spring5HN8 |
22F-15664-00-00 |
from US $3.12 |
||
|
11
|
11
99009-15400-00 Circlip(1Ar)5HN8 |
99009-15400-00 |
from US $1.18 |
||
|
12
|
12
5HN-15620-00-00 Kick Crank Assy5HN8 |
5HN-15620-00-00 |
from US $80.69 |
||
| replacement | |||||
|
12
|
12
5B6-15620-00-00 Kick Crank Assy5HN8 |
5B6-15620-00-00 |
from US $80.69 |
||
|
13
|
13
156-15618-01-00 Cover, Kick Lever5HN8 |
156-15618-01-00 |
from US $4.58 |
||
|
14
|
14
970-17060-25-00 Bolt5HN8 |
970-17060-25-00 |
from US $1.36 |
||
|
15
|
15
93102-15147-00 Oil Seal5HN8 |
93102-15147-00 |
from US $10.19 |
||
