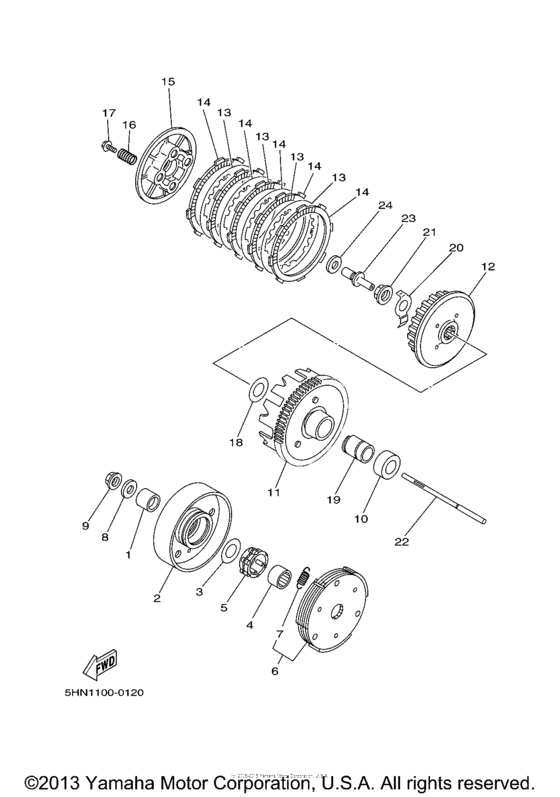

Clutch Diagram Yamaha TTR90 TT-R90
- Year
- 2003
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90560-16385-00 Collar |
90560-16385-00 |
from US $33.01 |
||
| replacement | |||||
|
1
|
1
90387-16001-00 Collar |
90387-16001-00 |
from US $33.01 |
||
|
2
|
2
5HN-16611-00-00 Clutch Housing Comp |
5HN-16611-00-00 |
from US $147.73 |
||
|
3
|
3
90201-167P7-00 Washer, Plate |
90201-167P7-00 |
from US $7.93 |
||
|
4
|
4
4GL-16512-01-00 Boss, Clutch Housing |
4GL-16512-01-00 |
from US $35.51 |
||
|
5
|
5
5HN-16664-00-00 Bearing, One Way |
5HN-16664-00-00 |
from US $140.92 |
||
|
6
|
6
5HN-16620-00-00 Clutch Carrier Assy |
5HN-16620-00-00 |
US $141.70 |
||
| replacement | |||||
|
6
|
6
5HN-16620-01-00 Clutch Carrier Assy |
5HN-16620-01-00 |
US $141.70 |
||
|
7
|
7
5HN-16626-00-00 Spring, Clutch Weight 1 |
5HN-16626-00-00 |
US $8.96 |
||
|
8
|
8
90201-122H1-00 Washer, Plate (35T) |
90201-122H1-00 |
from US $3.83 |
||
|
9
|
9
90179-12659-00 Nut |
90179-12659-00 |
from US $1.70 |
||
|
10
|
10
90560-17384-00 Spacer |
90560-17384-00 |
from US $14.45 |
||
|
11
|
11
4ST-16150-01-00 Primary Driven Gear Comp |
4ST-16150-01-00 |
from US $218.29 |
||
|
12
|
12
4GL-16371-00-00
Boss, Clutch
|
4GL-16371-00-00 |
— | ||
|
13
|
13
2JG-16324-00-00 Plate, Clutch 1 |
2JG-16324-00-00 |
from US $4.30 |
||
|
14
|
14
3YR-16321-00-00 Plate, Friction |
3YR-16321-00-00 |
from US $17.28 |
||
|
15
|
15
2JG-16351-02-00 Plate, Pressure 1 |
2JG-16351-02-00 |
from US $13.27 |
||
|
16
|
16
90501-20002-00 Spring, Compression |
90501-20002-00 |
from US $2.55 |
||
|
17
|
17
90119-05001-00 Bolt, With Washer |
90119-05001-00 |
from US $1.84 |
||
|
18
|
18
90201-174L9-00 Washer, Plate |
90201-174L9-00 |
from US $7.51 |
||
|
19
|
19
90560-17328-00 Spacer |
90560-17328-00 |
from US $13.88 |
||
|
20
|
20
4GL-16135-00-00 Washer, Lock |
4GL-16135-00-00 |
from US $4.73 |
||
|
21
|
21
90179-14001-00 Nut |
90179-14001-00 |
from US $5.81 |
||
|
22
|
22
4GL-16357-00-00 Rod, Push 2 |
4GL-16357-00-00 |
from US $50.70 |
||
|
23
|
23
2JG-16356-00-00 Rod, Push 1 |
2JG-16356-00-00 |
from US $18.61 |
||
| replacement | |||||
|
23
|
23
4S9-E6356-00-00 Rod, Push 1 |
4S9-E6356-00-00 |
from US $23.09 |
||
|
24
|
24
90201-10591-00 Washer, Plate |
90201-10591-00 |
from US $1.35 |
||
| replacement | |||||
|
24
|
24
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
