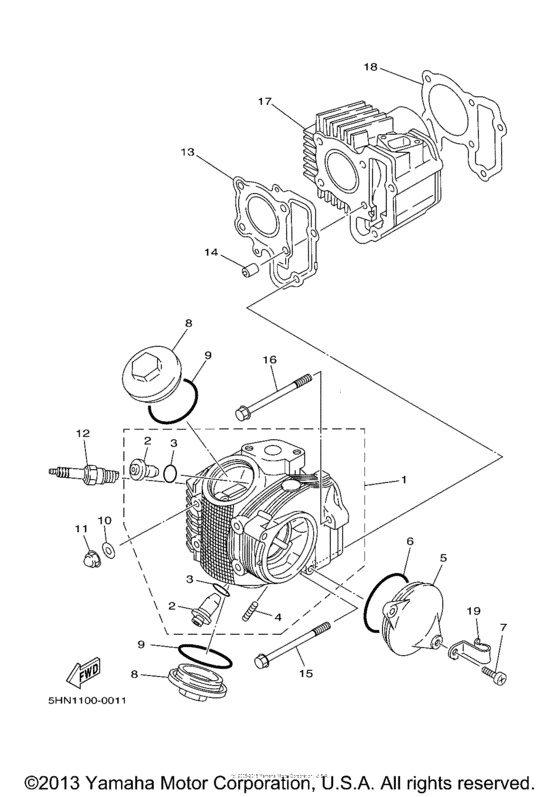

Cylinder head Diagram Yamaha TTR90 TT-R90
- Year
- 2003
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GL-11110-11-00
Cylinder Head Assy
|
4GL-11110-11-00 |
— | ||
|
2
|
2
4GL-11134-10-00 Guide, Valve 2 |
4GL-11134-10-00 |
from US $40.20 |
||
|
3
|
3
93210-09418-00 O-Ring |
93210-09418-00 |
from US $6.38 |
||
|
4
|
4
22F-14651-00-00 Bolt, Stud |
22F-14651-00-00 |
from US $3.54 |
||
|
5
|
5
50M-11185-01-00 Cover, Cylinder Head Side 3 |
50M-11185-01-00 |
from US $19.06 |
||
| replacement | |||||
|
5
|
5
50M-11185-10-00 Cover, Cylinder Head Side 3 |
50M-11185-10-00 |
from US $13.10 |
||
|
6
|
6
93210-63556-00 O-Ring |
93210-63556-00 |
from US $2.32 |
||
|
7
|
7
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
8
|
8
22F-11186-00-00 Cover, Cylinder Head Side 2 |
22F-11186-00-00 |
from US $12.89 |
||
| replacement | |||||
|
8
|
8
22F-11186-10-00 Cover, Cylinder Head Side 2 |
22F-11186-10-00 |
from US $10.26 |
||
|
9
|
9
93210-44704-00 O-Ring |
93210-44704-00 |
from US $1.42 |
||
|
10
|
10
90201-08609-00 Rondelle, Plate |
90201-08609-00 |
from US $2.12 |
||
| replacement | |||||
|
10
|
10
90201-080L7-00 Washer, Plate |
90201-080L7-00 |
from US $2.69 |
||
|
11
|
11
90176-08026-00 Nut, Crown |
90176-08026-00 |
from US $1.28 |
||
|
12
|
12
NGK-CR6HS-A0-00 Plug, Spark (Ngk Cr6Hsa)UR |
NGK-CR6HS-A0-00 |
US $4.23 |
||
| replacement | |||||
|
12
|
12
CR6-HSA00-00-00 Plug Spark (Ngk Cr6Hsa)UR |
CR6-HSA00-00-00 |
US $32.92 |
||
|
13
|
13
4GL-11181-00-00 Gasket, Cylinder Head 1 |
4GL-11181-00-00 |
from US $16.01 |
||
|
14
|
14
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
15
|
15
95027-06085-00 Bolt, Flange |
95027-06085-00 |
from US $1.56 |
||
|
16
|
16
90105-06004-00 Bolt, Flange |
90105-06004-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
95027-06085-00 Bolt, Flange |
95027-06085-00 |
from US $1.56 |
||
|
17
|
17
4GL-11311-01-00
Cylinder 1
|
4GL-11311-01-00 |
— | ||
|
18
|
18
5HN-11351-00-00 Gasket, Cylinder |
5HN-11351-00-00 |
from US $6.80 |
||
|
19
|
19
90465-08230-00 Clamp |
90465-08230-00 |
from US $3.12 |
||
