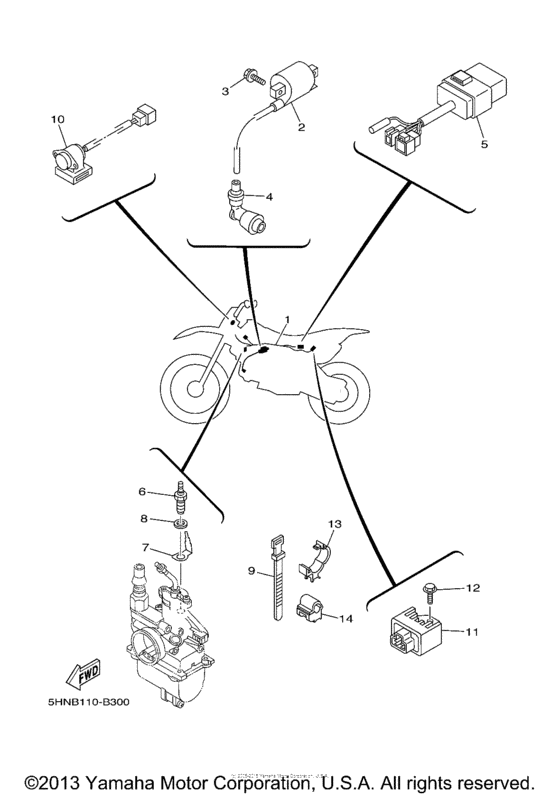

Electrical (1) Diagram Yamaha TTR90 TT-R90
- Year
- 2003
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HN-82590-00-00 Wire Harness Assy |
5HN-82590-00-00 |
US $14.51 |
||
|
2
|
2
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
2
|
2
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
2
|
2
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
2
|
2
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
2
|
2
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
2
|
2
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
2
|
2
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
3
|
3
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
4
|
4
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
| replacement | |||||
|
4
|
4
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.10 |
||
|
5
|
5
4GL-85540-20-00 C.d.i. Unit Assy |
4GL-85540-20-00 |
from US $135.67 |
||
|
6
|
6
5FU-83790-02-00
Heater Assy (30W)
30W |
5FU-83790-02-00 |
— | ||
|
7
|
7
3BT-82103-00-00 Terminal 1 |
3BT-82103-00-00 |
from US $1.31 |
||
| replacement | |||||
|
7
|
7
5FU-82103-00-00 Terminal 1 |
5FU-82103-00-00 |
from US $1.84 |
||
|
8
|
8
90201-085R5-00 Washer, Plate |
90201-085R5-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90201-08016-00 Washer, Plate |
90201-08016-00 |
from US $1.70 |
||
|
9
|
9
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.56 |
||
|
10
|
10
4TR-82560-00-00 Thermo Switch Assy |
4TR-82560-00-00 |
US $68.53 |
||
|
11
|
11
4CK-81960-01-00 Rectifier & Regulator Assy |
4CK-81960-01-00 |
from US $85.38 |
||
|
12
|
12
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
13
|
13
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.70 |
||
|
14
|
14
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.70 |
||
