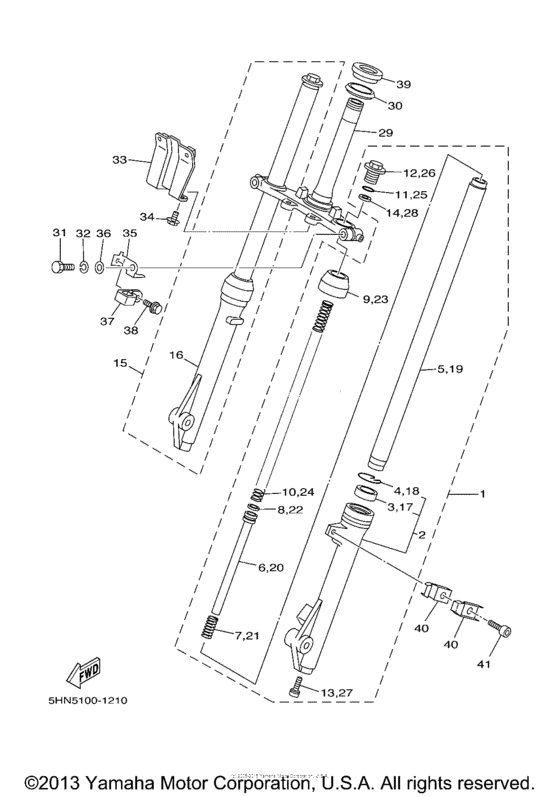

Front fork Diagram Yamaha TTR90 TT-R90
- Year
- 2003
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5HN-23102-01-00 Front Fork Assy (L.h) |
5HN-23102-01-00 |
US $338.58 |
||
|
2
|
2
3RV-23126-01-00 Tube, Outer (L.h) |
3RV-23126-01-00 |
from US $215.64 |
||
|
3
|
3
3M7-23145-00-00 Oil Seal |
3M7-23145-00-00 |
from US $24.34 |
||
| replacement | |||||
|
3
|
3
1RY-23145-00-00 Oil Seal |
1RY-23145-00-00 |
from US $17.20 |
||
|
4
|
4
3M7-23156-00-00 Ring, Snap |
3M7-23156-00-00 |
from US $4.68 |
||
|
5
|
5
21W-23110-00-00 Inner Tube Comp. 1 |
21W-23110-00-00 |
from US $116.19 |
||
|
6
|
6
5HN-23170-00-00 Cylinder Comp., Front Fork |
5HN-23170-00-00 |
US $75.17 |
||
|
7
|
7
2J5-23151-00-00 Spring, Rebound |
2J5-23151-00-00 |
from US $5.10 |
||
|
8
|
8
2J5-23157-00-00 Ring, Piston |
2J5-23157-00-00 |
from US $9.21 |
||
|
9
|
9
3M7-23144-00-00 Seal, Dust |
3M7-23144-00-00 |
from US $21.06 |
||
|
10
|
10
21W-23141-00-00 Spring, Front Fork |
21W-23141-00-00 |
from US $30.60 |
||
|
11
|
11
2J5-23147-00-00 O-Ring |
2J5-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
93210-17570-00 O-Ring |
93210-17570-00 |
from US $1.70 |
||
|
12
|
12
3M7-23111-01-00 Bolt, Cap |
3M7-23111-01-00 |
from US $33.58 |
||
|
13
|
13
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
14
|
14
3M7-23142-00-00 Seat, Spring Upper |
3M7-23142-00-00 |
from US $8.08 |
||
|
15
|
15
5HN-23103-01-00 Front Fork Assy (R.h) |
5HN-23103-01-00 |
from US $189.32 |
||
|
16
|
16
3RV-23136-01-00 Tube, Outer 2 |
3RV-23136-01-00 |
from US $216.70 |
||
|
17
|
17
1R7-23145-00-00
Oil Seal
|
1R7-23145-00-00 |
— | ||
|
18
|
18
3M7-23156-00-00 Ring, Snap |
3M7-23156-00-00 |
from US $4.68 |
||
|
19
|
19
21W-23110-00-00 Inner Tube Comp. 1 |
21W-23110-00-00 |
from US $116.19 |
||
|
20
|
20
5HN-23170-00-00 Cylinder Comp., Front Fork |
5HN-23170-00-00 |
US $75.17 |
||
|
21
|
21
2J5-23151-00-00 Spring, Rebound |
2J5-23151-00-00 |
from US $5.10 |
||
|
22
|
22
2J5-23157-00-00 Ring, Piston |
2J5-23157-00-00 |
from US $9.21 |
||
|
23
|
23
3M7-23144-00-00 Seal, Dust |
3M7-23144-00-00 |
from US $21.06 |
||
|
24
|
24
21W-23141-00-00 Spring, Front Fork |
21W-23141-00-00 |
from US $30.60 |
||
|
25
|
25
2J5-23147-00-00 O-Ring |
2J5-23147-00-00 |
from US $1.70 |
||
| replacement | |||||
|
25
|
25
93210-17570-00 O-Ring |
93210-17570-00 |
from US $1.70 |
||
|
26
|
26
3M7-23111-01-00 Bolt, Cap |
3M7-23111-01-00 |
from US $33.58 |
||
|
27
|
27
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
28
|
28
3M7-23142-00-00 Seat, Spring Upper |
3M7-23142-00-00 |
from US $8.08 |
||
|
29
|
29
5HN-23340-00-00 Under Bracket Comp |
5HN-23340-00-00 |
from US $204.48 |
||
|
30
|
30
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
31
|
31
451-23346-01-00 Bolt 1 |
451-23346-01-00 |
from US $8.64 |
||
|
32
|
32
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
32
|
32
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
33
|
33
5HN-23486-00-00 Stay, Plate |
5HN-23486-00-00 |
from US $22.39 |
||
|
34
|
34
5HN-23492-00-00 Bolt |
5HN-23492-00-00 |
from US $2.55 |
||
|
35
|
35
5HN-2334G-00-00 Bracket 1 |
5HN-2334G-00-00 |
from US $8.28 |
||
|
36
|
36
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
36
|
36
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
37
|
37
5HN-23857-00-00 Holder |
5HN-23857-00-00 |
from US $4.53 |
||
|
38
|
38
90105-05002-00 Bolt, Flange |
90105-05002-00 |
from US $1.70 |
||
|
39
|
39
93399-99942-00 Bearing |
93399-99942-00 |
from US $36.20 |
||
|
40
|
40
90462-14055-00 Clamp |
90462-14055-00 |
from US $4.82 |
||
|
41
|
41
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
