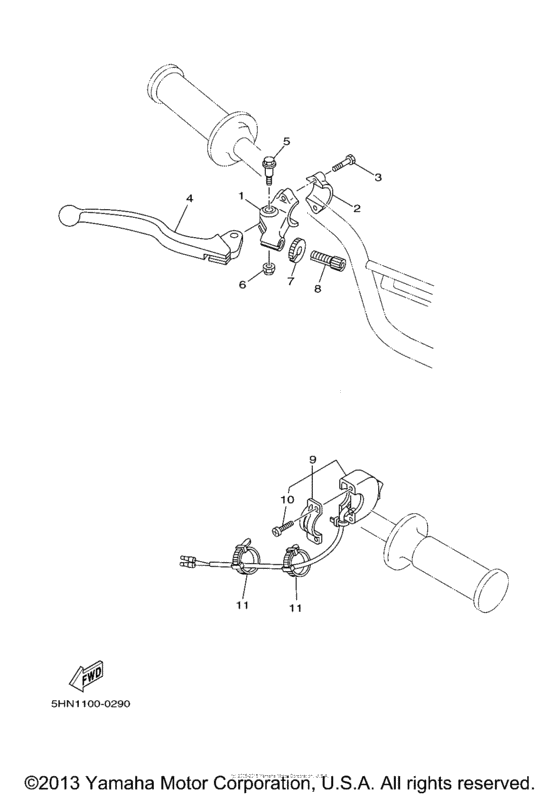

Handle switch lever Diagram Yamaha TTR90 TT-R90
- Year
- 2003
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38V-82921-00-00 Holder, Lever 2 |
38V-82921-00-00 |
from US $24.23 |
||
|
2
|
2
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $3.98 |
||
|
3
|
3
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
3
|
3
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
4
|
4
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
4
|
4
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $9.92 |
||
|
5
|
5
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
6
|
6
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
7
|
7
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
7
|
7
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
8
|
8
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
8
|
8
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
8
|
8
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
9
|
9
5HN-83976-00-00 Switch, Handle 1 |
5HN-83976-00-00 |
from US $77.37 |
||
|
10
|
10
985-07040-14-00 Screw, Pan Head |
985-07040-14-00 |
from US $1.42 |
||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
