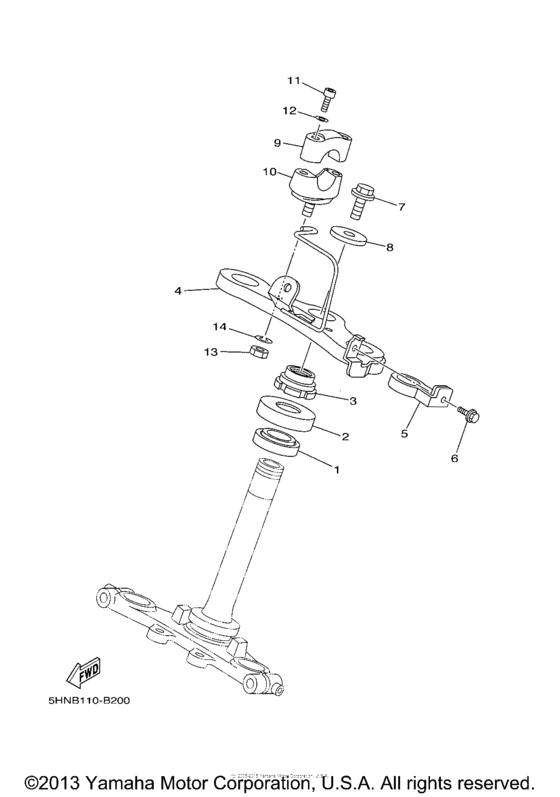

Steering Diagram Yamaha TTR90 TT-R90
- Year
- 2003
- Sales region
- USA
- Engine Capacity
- 900
- Model
- TTR90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93399-99949-00 Bearing |
93399-99949-00 |
from US $33.15 |
||
|
2
|
2
36X-23416-00-00 Cover, Ball Race 2 |
36X-23416-00-00 |
from US $12.62 |
||
|
3
|
3
90179-25051-00 Nut |
90179-25051-00 |
from US $17.99 |
||
|
4
|
4
5HN-23435-00-00
Crown, Handle
|
5HN-23435-00-00 |
— | ||
|
5
|
5
4GY-23389-00-00
Guide, Cable
|
4GY-23389-00-00 |
— | ||
|
6
|
6
90105-05002-00 Bolt, Flange |
90105-05002-00 |
from US $1.70 |
||
|
7
|
7
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
8
|
8
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
|
9
|
9
3RV-23441-01-00 Holder, Handle Upper |
3RV-23441-01-00 |
from US $15.77 |
||
|
10
|
10
462-23442-00-35 Holder, Handle LowerSL |
462-23442-00-35 |
from US $24.65 |
||
|
11
|
11
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
12
|
12
929-04066-00-00
Washer, Plate
|
929-04066-00-00 |
— | ||
| replacements | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
13
|
13
95307-10600-00 Nut |
95307-10600-00 |
from US $2.27 |
||
| replacement | |||||
|
13
|
13
95337-10600-00 Nut |
95337-10600-00 |
from US $2.27 |
||
|
14
|
14
92907-10100-00 Washer, Spring |
92907-10100-00 |
from US $1.21 |
||
