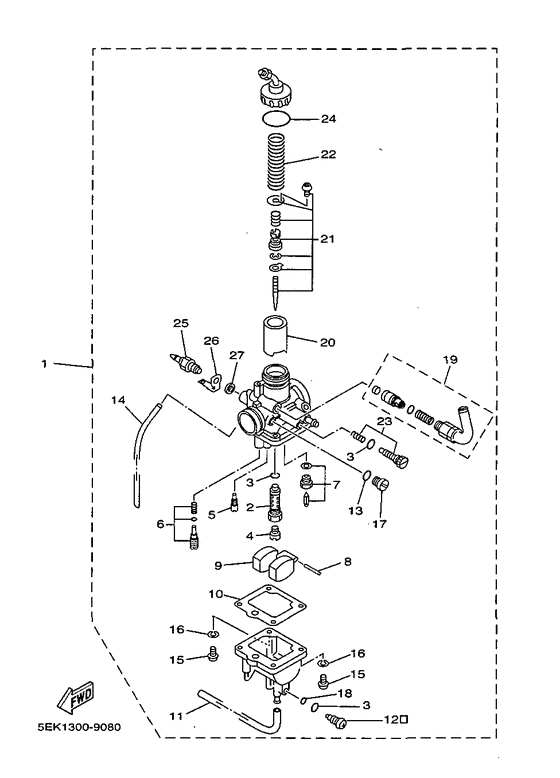

Carburetor Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- Italy (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EK-14301-00-00
Carburetor Assy 1
|
5EK-14301-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5EK-14301-02-00
Carburetor Assy 1
|
5EK-14301-02-00 |
— | ||
|
02
|
02
15E-14341-00-00 Nozzle, Main |
15E-14341-00-00 |
from US $27.97 |
||
|
03
|
03
360-24512-00-00 O-Ring |
360-24512-00-00 |
from US $4.68 |
||
|
04
|
04
288-14343-59-00 Jet, Main #118 |
288-14343-59-00 |
from US $12.28 |
||
|
05
|
05
367-14342-19-00
Jet, Pilot #38
|
367-14342-19-00 |
— | ||
|
06
|
06
5EK-14105-00-00
Pilot Screw Set
|
5EK-14105-00-00 |
— | ||
|
07
|
07
5EK-14107-00-00 Needle Valve Set |
5EK-14107-00-00 |
US $48.63 |
||
|
08
|
08
626-14386-00-00 Pin, Float |
626-14386-00-00 |
US $4.11 |
||
| replacement | |||||
|
08
|
08
647-14386-10-00 Pin, Float |
647-14386-10-00 |
from US $2.88 |
||
|
09
|
09
15E-14385-01-00
Float
|
15E-14385-01-00 |
— | ||
| replacement | |||||
|
09
|
09
54G-14385-00-00
Float
|
54G-14385-00-00 |
— | ||
|
10
|
10
5H0-14384-00-00 Gasket, Float Chamber |
5H0-14384-00-00 |
from US $16.43 |
||
|
11
|
11
5H0-14349-00-00
Pipe
|
5H0-14349-00-00 |
— | ||
| replacements | |||||
|
11
|
11
36F-14396-00-00
Pipe
|
36F-14396-00-00 |
— | ||
|
11
|
11
14T-14349-00-00
Pipe
|
14T-14349-00-00 |
— | ||
|
12
|
12
5H0-14115-00-00 Plug, Screw |
5H0-14115-00-00 |
US $22.68 |
||
|
13
|
13
5H0-14126-00-00 Gasket |
5H0-14126-00-00 |
from US $6.61 |
||
|
14
|
14
5EK-14348-00-00
Pipe, Adjuster
|
5EK-14348-00-00 |
— | ||
|
15
|
15
985-01040-14-00
Screw, Pan Head
|
985-01040-14-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
16
|
16
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
5H0-14991-00-00 Screw |
5H0-14991-00-00 |
from US $3.54 |
||
|
18
|
18
5H0-14397-00-00 O-Ring |
5H0-14397-00-00 |
from US $2.55 |
||
|
19
|
19
5EK-1410A-00-00
Starter Set
|
5EK-1410A-00-00 |
— | ||
|
20
|
20
15E-14312-25-00
Valve, Throttle 1
|
15E-14312-25-00 |
— | ||
|
21
|
21
5EK-1490J-00-00
Needle Set
|
5EK-1490J-00-00 |
— | ||
|
22
|
22
15E-14331-00-00 Spring, Thrtl Valve |
15E-14331-00-00 |
US $28.69 |
||
|
23
|
23
5EK-14103-00-00
Throttle Screw Set
|
5EK-14103-00-00 |
— | ||
|
24
|
24
1J2-14147-00-00 O-Ring |
1J2-14147-00-00 |
US $6.61 |
||
|
25
|
25
4TR-83790-00-00
Heater Assy (15W)
|
4TR-83790-00-00 |
— | ||
| replacement | |||||
|
25
|
25
5FU-83790-00-00 Heater Assy |
5FU-83790-00-00 |
US $27.20 |
||
|
26
|
26
3BT-82103-00-00 Terminal 1 |
3BT-82103-00-00 |
from US $1.31 |
||
| replacement | |||||
|
26
|
26
5FU-82103-00-00 Terminal 1 |
5FU-82103-00-00 |
from US $1.84 |
||
|
27
|
27
90201-085R5-00 Washer, Plate |
90201-085R5-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
90201-08016-00 Washer, Plate |
90201-08016-00 |
from US $1.70 |
||
