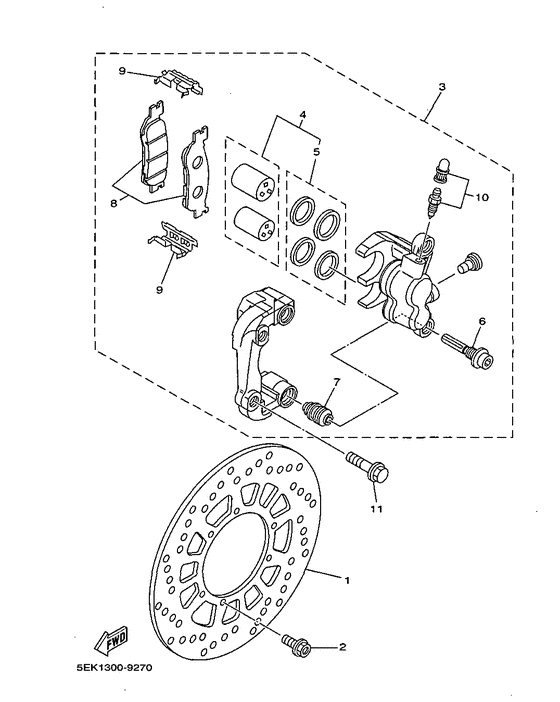

Front brake. caliper Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- Italy (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JG-2582T-10-00 Disc, Brake (Left) |
4JG-2582T-10-00 |
from US $71.82 |
||
| replacement | |||||
|
01
|
01
5XT-2582T-00-00 Disc, Brake (Left) |
5XT-2582T-00-00 |
from US $104.44 |
||
|
02
|
02
90109-065G4-00 Bolt, Flange |
90109-065G4-00 |
from US $1.42 |
||
| replacement | |||||
|
02
|
02
901-05061-09-00 Bolt, Flange |
901-05061-09-00 |
from US $1.42 |
||
|
03
|
03
5EK-2580T-00-00
Caliper Assy (Left)
|
5EK-2580T-00-00 |
— | ||
|
04
|
04
4JG-W0057-00-00 Piston Assy, Caliper |
4JG-W0057-00-00 |
from US $61.63 |
||
| replacement | |||||
|
04
|
04
4JG-25802-00-00 Piston Assy, Caliper |
4JG-25802-00-00 |
from US $63.55 |
||
|
05
|
05
4JG-W0047-00-00 Caliper Seal Kit |
4JG-W0047-00-00 |
from US $12.87 |
||
| replacement | |||||
|
05
|
05
4JG-25803-00-00 Caliper Seal Kit |
4JG-25803-00-00 |
from US $14.84 |
||
|
06
|
06
4TT-25914-00-00
Pin, Slide
|
4TT-25914-00-00 |
— | ||
| replacement | |||||
|
06
|
06
5JW-25914-10-00 Pin, Slide |
5JW-25914-10-00 |
from US $5.68 |
||
|
07
|
07
4TT-25937-00-00 Boot 2 |
4TT-25937-00-00 |
from US $9.44 |
||
|
08
|
08
5EK-W0045-00-00 Brake Pad Kit |
5EK-W0045-00-00 |
US $65.35 |
||
|
09
|
09
4TT-25919-00-00 Support, Pad |
4TT-25919-00-00 |
from US $7.07 |
||
|
10
|
10
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
10
|
10
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
11
|
11
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
