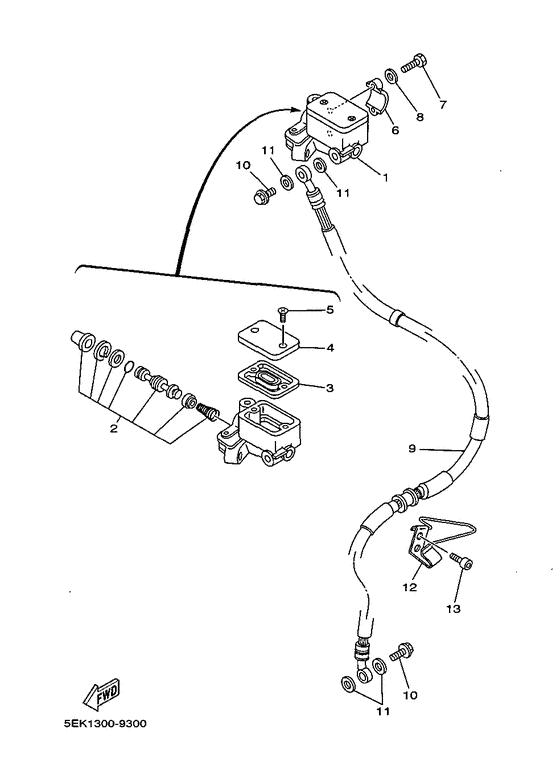

Front master cylinder Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- Italy (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3RW-25870-03-00 Master Cylinder Sub Assy |
3RW-25870-03-00 |
from US $163.67 |
||
| replacement | |||||
|
01
|
01
4GY-25870-02-00 Master Cylinder Sub Assy |
4GY-25870-02-00 |
from US $216.91 |
||
|
02
|
02
3RW-W0041-02-00 Cylinder Kit, Master |
3RW-W0041-02-00 |
from US $44.22 |
||
| replacements | |||||
|
02
|
02
5CG-W0041-00-00 Cylinder Kit, Master |
5CG-W0041-00-00 |
from US $45.11 |
||
|
02
|
02
5RS-25807-03-00 Cylinder Kit, Master |
5RS-25807-03-00 |
from US $45.11 |
||
|
03
|
03
3RW-25854-00-00 Diaphragm, Reservoir |
3RW-25854-00-00 |
from US $11.29 |
||
|
04
|
04
3RW-25852-00-00 Cap, Reservoir |
3RW-25852-00-00 |
from US $21.39 |
||
| replacement | |||||
|
04
|
04
4GY-25852-01-00 Cap, Reservoir |
4GY-25852-01-00 |
from US $21.39 |
||
|
05
|
05
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
05
|
05
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
06
|
06
3RW-25867-00-00 Bracket, Master Cylinder |
3RW-25867-00-00 |
from US $13.46 |
||
| replacement | |||||
|
06
|
06
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
07
|
07
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
07
|
07
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
09
|
09
5BT-25872-00-00
Hose, Brake 1
|
5BT-25872-00-00 |
— | ||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
12
|
12
34X-25876-00-00 Holder, Brake Hose 2 |
34X-25876-00-00 |
from US $12.61 |
||
|
13
|
13
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
