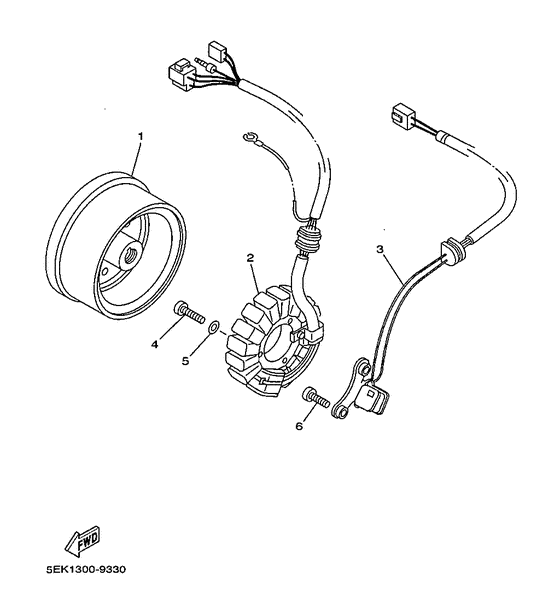

Generator Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- Italy (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BT-85550-00-00 Rotor Assy |
5BT-85550-00-00 |
from US $258.56 |
||
| replacements | |||||
|
01
|
01
5BT-85550-01-00 Rotor Assy |
5BT-85550-01-00 |
from US $258.56 |
||
|
01
|
01
5BT-85550-02-00 ROTOR ASSY |
5BT-85550-02-00 |
from US $235.06 |
||
|
02
|
02
4WP-85510-10-00 Stator Assy |
4WP-85510-10-00 |
from US $302.57 |
||
|
03
|
03
4JG-85580-01-00 Coil, Pulser |
4JG-85580-01-00 |
from US $56.22 |
||
|
04
|
04
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
04
|
04
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
05
|
05
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
06
|
06
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
06
|
06
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
