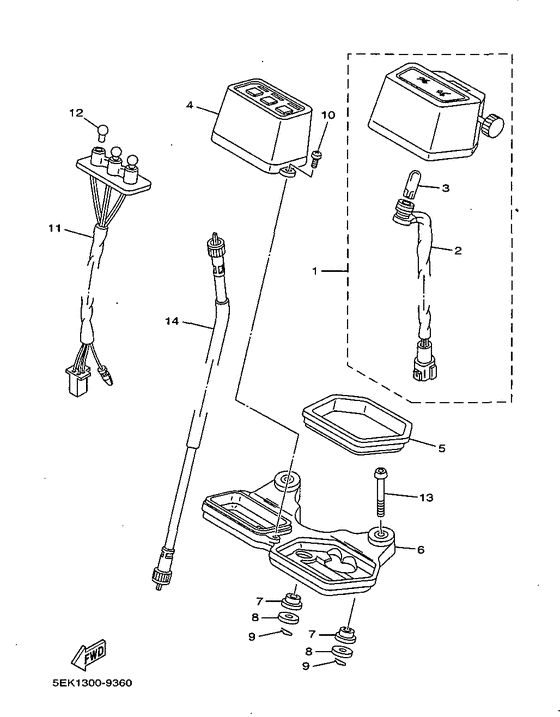

Meter Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- Italy (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3RM-83570-00-00 Speedometer AssyUr |
3RM-83570-00-00 |
US $295.45 |
||
| replacement | |||||
|
01
|
01
3RM-83570-40-00 Speedometer AssyUr |
3RM-83570-40-00 |
US $295.45 |
||
|
01
|
01
5EK-83570-10-00
Speedometer Assy
Ur for gbr |
5EK-83570-10-00 |
— | ||
| replacement | |||||
|
01
|
01
5EK-83570-30-00
Speedometer Assy
Ur for gbr |
5EK-83570-30-00 |
— | ||
|
02
|
02
3RM-83536-00-00 Socket, Meter |
3RM-83536-00-00 |
US $53.61 |
||
|
03
|
03
4R0-83517-00-00 Bulb (12V-3.4W T10) |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
03
|
03
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
03
|
03
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
|
04
|
04
5EK-83568-00-00 Pilot Box, Upper |
5EK-83568-00-00 |
from US $21.08 |
||
|
05
|
05
5Y1-83513-00-00 Damper |
5Y1-83513-00-00 |
from US $18.99 |
||
|
06
|
06
15A-83519-00-00 Bracket, Meter |
15A-83519-00-00 |
from US $35.22 |
||
|
07
|
07
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
07
|
07
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
08
|
08
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
09
|
09
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
09
|
09
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
10
|
10
90164-04008-00 Screw, Tapping |
90164-04008-00 |
from US $2.55 |
||
|
11
|
11
5EK-83509-00-00 Socket Cord Assy |
5EK-83509-00-00 |
US $105.42 |
||
|
12
|
12
123-83516-20-00 Bulb |
123-83516-20-00 |
from US $3.26 |
||
| replacements | |||||
|
12
|
12
123-83516-21-XX Bulb (12V-3.4W) |
123-83516-21-XX |
US $63.70 |
||
|
12
|
12
123-83516-21-00 Bulb (12V3.4W) |
123-83516-21-00 |
from US $3.26 |
||
|
13
|
13
95807-06045-00 Bolt, Flange |
95807-06045-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
95817-06045-00 Bolt, Flange |
95817-06045-00 |
from US $1.21 |
||
|
14
|
14
4GA-83550-01-00 Speedometer Cable Assy |
4GA-83550-01-00 |
US $32.01 |
||
| replacement | |||||
|
14
|
14
1UU-83550-01-00 Speedometer Cable Assy |
1UU-83550-01-00 |
US $32.01 |
||
