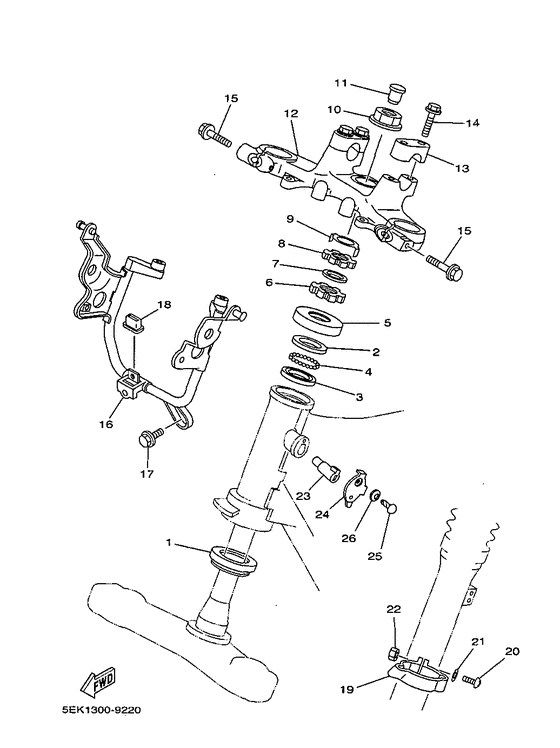

Steering Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- Italy (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
93399-99942-00 Bearing |
93399-99942-00 |
from US $36.49 |
||
|
02
|
02
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
02
|
02
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
03
|
03
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
03
|
03
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
04
|
04
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
05
|
05
36X-23416-00-00 Cover, Ball Race 2 |
36X-23416-00-00 |
from US $12.62 |
||
|
06
|
06
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
06
|
06
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
06
|
06
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
07
|
07
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
08
|
08
901-79256-15-00
Nut
|
901-79256-15-00 |
— | ||
| replacement | |||||
|
08
|
08
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
09
|
09
3YF-23418-00-00 Washer, Special |
3YF-23418-00-00 |
from US $7.65 |
||
|
10
|
10
90179-22412-00 Nut |
90179-22412-00 |
from US $8.64 |
||
| replacement | |||||
|
10
|
10
901-79220-05-00 Nut |
901-79220-05-00 |
from US $22.22 |
||
|
11
|
11
90338-16148-00 Plug |
90338-16148-00 |
from US $2.09 |
||
|
12
|
12
2JX-23435-00-35 Crown, HandleSl |
2JX-23435-00-35 |
from US $103.21 |
||
| replacement | |||||
|
12
|
12
2JX-23435-10-35 Sl |
2JX-23435-10-35 |
from US $103.21 |
||
|
13
|
13
1E6-23441-00-35
Holder, handle upper
Sl |
1E6-23441-00-35 |
— | ||
|
14
|
14
95824-08035-00 Bolt, Flange |
95824-08035-00 |
from US $2.91 |
||
| replacement | |||||
|
14
|
14
95814-08035-00 Bolt, Flange(4Fm) |
95814-08035-00 |
from US $2.69 |
||
|
15
|
15
95027-08050-00 Bolt, Flange |
95027-08050-00 |
from US $1.70 |
||
|
16
|
16
5EK-23174-00-00
Stay, Headlight
|
5EK-23174-00-00 |
— | ||
|
17
|
17
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
18
|
18
30X-23445-00-00 Damper |
30X-23445-00-00 |
from US $8.74 |
||
|
19
|
19
34X-23317-00-00 Holder, Cable |
34X-23317-00-00 |
from US $6.52 |
||
|
20
|
20
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
21
|
21
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
22
|
22
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
22
|
22
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
|
24
|
24
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
25
|
25
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
26
|
26
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
