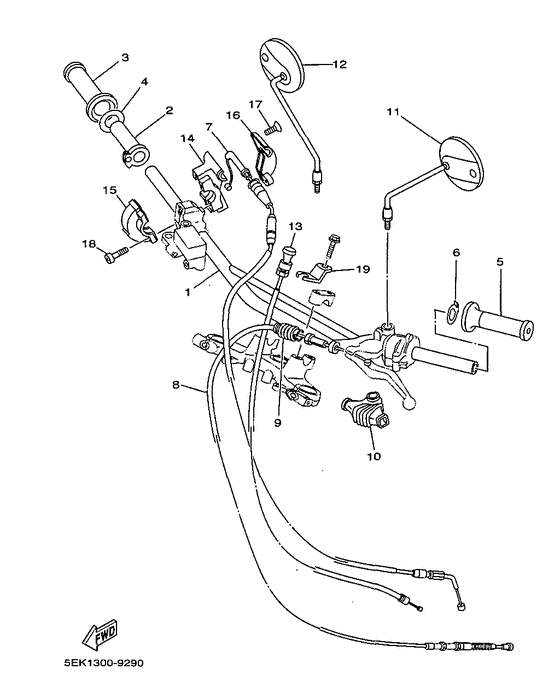

Steering handle & cable Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- Italy (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EK-26111-00-00 Handlebar |
5EK-26111-00-00 |
US $95.95 |
||
|
02
|
02
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
03
|
03
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
04
|
04
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
05
|
05
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
06
|
06
4RR-26129-00-00 Washer |
4RR-26129-00-00 |
from US $8.74 |
||
|
07
|
07
5EK-26311-01-00
Cable, Throttle 1
|
5EK-26311-01-00 |
— | ||
|
08
|
08
5EK-26335-00-00 Cable, clutch |
5EK-26335-00-00 |
from US $30.18 |
||
|
09
|
09
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
10
|
10
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
11
|
11
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) |
55V-26280-00-00 |
from US $51.12 |
||
|
12
|
12
55V-26290-00-00 Rear View Mirror Assy (Right) |
55V-26290-00-00 |
US $51.12 |
||
|
13
|
13
5EK-26331-00-00
Cable, Starter 1
|
5EK-26331-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99032-17-00
Cable, Starter 1
|
999-99032-17-00 |
— | ||
|
14
|
14
5X2-26281-00-00 Cap, Grip Upper |
5X2-26281-00-00 |
from US $21.82 |
||
|
15
|
15
322-26282-00-00 Cap, Grip Under |
322-26282-00-00 |
from US $14.45 |
||
|
16
|
16
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
17
|
17
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
18
|
18
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
19
|
19
4BE-2637G-00-00 Holder, Wire |
4BE-2637G-00-00 |
from US $19.46 |
||
| replacement | |||||
|
19
|
19
4BE-2637G-10-00 Holder, Wire |
4BE-2637G-10-00 |
from US $21.11 |
||
