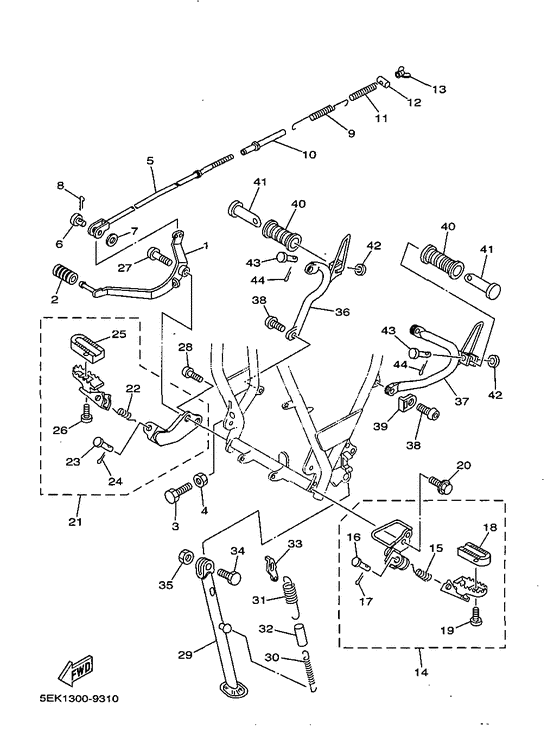

Support repose pied Diagram Yamaha TW125
- Year
- 1999
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5EK1
- Sales region
- France (050)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EK-27211-00-00 Pedal, Brake |
5EK-27211-00-00 |
US $44.89 |
||
|
02
|
02
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
03
|
03
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
03
|
03
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
04
|
04
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
05
|
05
2JX-27231-00-00 Rod, Brake |
2JX-27231-00-00 |
from US $9.07 |
||
|
06
|
06
90240-06076-00 Pin, Clevis |
90240-06076-00 |
from US $1.70 |
||
|
07
|
07
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
08
|
08
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
08
|
08
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
08
|
08
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
09
|
09
90506-18289-00 Spring, Tension |
90506-18289-00 |
from US $5.24 |
||
|
10
|
10
1M1-27244-00-00 Cover |
1M1-27244-00-00 |
from US $5.38 |
||
|
11
|
11
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
12
|
12
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
13
|
13
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
14
|
14
5EK-27410-00-00 Front Footrest Assy (Left) |
5EK-27410-00-00 |
US $112.44 |
||
| replacement | |||||
|
14
|
14
5EK-27410-01-00 Front Footrest Assy (Left) |
5EK-27410-01-00 |
US $112.44 |
||
|
15
|
15
90508-20583-00 Spring, Torsion |
90508-20583-00 |
from US $1.81 |
||
|
16
|
16
90240-10101-00 Pin, Clevis |
90240-10101-00 |
from US $7.23 |
||
|
17
|
17
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
17
|
17
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
18
|
18
3LD-27413-00-00 Cover, Footrest |
3LD-27413-00-00 |
US $30.38 |
||
|
19
|
19
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
20
|
20
95827-12025-00 Bolt, Flange |
95827-12025-00 |
from US $2.55 |
||
| replacement | |||||
|
20
|
20
95817-12025-00 Bolt, Flange |
95817-12025-00 |
from US $2.55 |
||
|
21
|
21
5EK-27420-00-00 Front Footrest Assy (Right) |
5EK-27420-00-00 |
US $112.44 |
||
| replacement | |||||
|
21
|
21
5EK-27420-11-00 Front Footrest Assy (Right) |
5EK-27420-11-00 |
US $112.44 |
||
|
22
|
22
90508-20583-00 Spring, Torsion |
90508-20583-00 |
from US $1.81 |
||
|
23
|
23
90240-10101-00 Pin, Clevis |
90240-10101-00 |
from US $7.23 |
||
|
24
|
24
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
24
|
24
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
25
|
25
3LD-27413-00-00 Cover, Footrest |
3LD-27413-00-00 |
US $30.38 |
||
|
26
|
26
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
27
|
27
92017-10035-00 Bolt, Button Head |
92017-10035-00 |
US $3.78 |
||
|
28
|
28
92017-10020-00 Bolt, Button Head |
92017-10020-00 |
from US $2.13 |
||
|
29
|
29
2JX-27311-02-00 Stand, Side |
2JX-27311-02-00 |
from US $58.99 |
||
|
30
|
30
90506-18224-00 Spring, Tension |
90506-18224-00 |
from US $5.10 |
||
|
31
|
31
90506-26225-00 Spring, Tension |
90506-26225-00 |
from US $6.52 |
||
|
32
|
32
1TX-27351-00-00 Guide, Side Stand |
1TX-27351-00-00 |
from US $4.96 |
||
|
33
|
33
5Y1-27315-00-00 Link, Side Stand |
5Y1-27315-00-00 |
from US $10.63 |
||
|
34
|
34
90109-10473-00 Bolt |
90109-10473-00 |
from US $3.54 |
||
|
35
|
35
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $4.16 |
||
|
36
|
36
2JX-27442-00-33 Bracket 2Yb |
2JX-27442-00-33 |
from US $56.92 |
||
| replacement | |||||
|
36
|
36
2JX-27442-11-00 Bracket 2Yb |
2JX-27442-11-00 |
from US $56.92 |
||
|
37
|
37
26F-27432-00-33 Bracket 1Yb |
26F-27432-00-33 |
from US $60.95 |
||
| replacement | |||||
|
37
|
37
26F-27432-10-00 Bracket 1Yb |
26F-27432-10-00 |
from US $60.95 |
||
|
38
|
38
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.56 |
||
|
39
|
39
2JX-27437-00-00 Washer, Special |
2JX-27437-00-00 |
from US $1.84 |
||
|
40
|
40
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.70 |
||
|
41
|
41
120-27431-00-00
Footrest, Rear 1
|
120-27431-00-00 |
— | ||
| replacement | |||||
|
41
|
41
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.74 |
||
|
42
|
42
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
43
|
43
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
44
|
44
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
44
|
44
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
44
|
44
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
