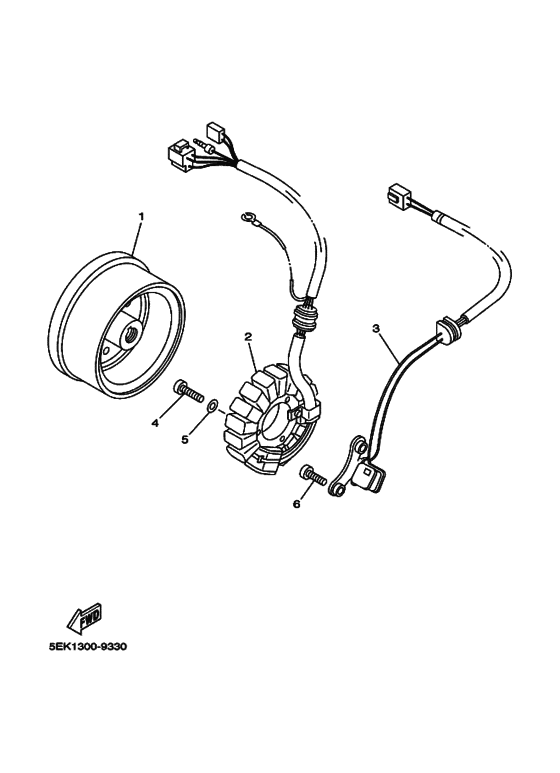

Generator Diagram Yamaha TW125
- Year
- 2000
- Colour
- Silver Metallic 1 (SM1; 0660)
- Model code
- 5EK3
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TW125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5BT-85550-00-00 Rotor Assy |
5BT-85550-00-00 |
from US $258.56 |
||
| replacements | |||||
|
1
|
1
5BT-85550-01-00 Rotor Assy |
5BT-85550-01-00 |
from US $258.56 |
||
|
1
|
1
5BT-85550-02-00 ROTOR ASSY |
5BT-85550-02-00 |
from US $235.06 |
||
|
2
|
2
4WP-85510-10-00 Stator Assy |
4WP-85510-10-00 |
from US $302.57 |
||
|
3
|
3
4JG-85580-01-00 Coil, Pulser |
4JG-85580-01-00 |
from US $56.22 |
||
|
4
|
4
985-07060-25-00
Screw, Pan Head
|
985-07060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
