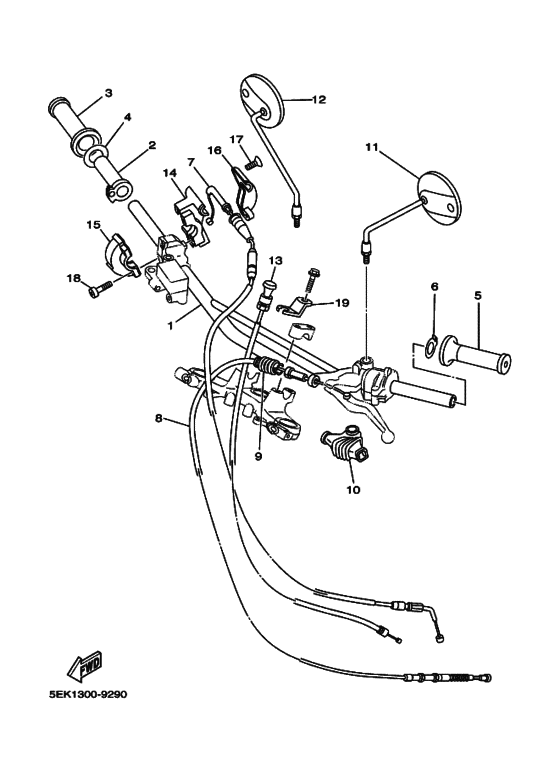

Steering handle & cable Diagram Yamaha TW125
- Year
- 2000
- Colour
- Deep Reddish Yellow Cocktail 1 (DRYC1; 0625)
- Model code
- 5EK3
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EK-26111-00-00 Handlebar |
5EK-26111-00-00 |
US $95.95 |
||
|
2
|
2
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
3
|
3
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
4
|
4
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
5
|
5
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
6
|
6
4RR-26129-00-00 Washer |
4RR-26129-00-00 |
from US $8.74 |
||
|
7
|
7
5EK-26311-01-00
Cable, Throttle 1
|
5EK-26311-01-00 |
— | ||
|
8
|
8
5EK-26335-00-00 Cable, clutch |
5EK-26335-00-00 |
from US $30.18 |
||
|
9
|
9
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
10
|
10
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
11
|
11
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) |
55V-26280-00-00 |
from US $51.12 |
||
|
12
|
12
55V-26290-00-00 Rear View Mirror Assy (Right) |
55V-26290-00-00 |
US $51.12 |
||
|
13
|
13
5EK-26331-00-00
Cable, Starter 1
|
5EK-26331-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99032-17-00
Cable, Starter 1
|
999-99032-17-00 |
— | ||
|
14
|
14
5X2-26281-00-00 Cap, Grip Upper |
5X2-26281-00-00 |
from US $21.82 |
||
|
15
|
15
322-26282-00-00 Cap, Grip Under |
322-26282-00-00 |
from US $14.45 |
||
|
16
|
16
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
17
|
17
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
18
|
18
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
19
|
19
4BE-2637G-00-00 Holder, Wire |
4BE-2637G-00-00 |
from US $19.46 |
||
| replacement | |||||
|
19
|
19
4BE-2637G-10-00 Holder, Wire |
4BE-2637G-10-00 |
from US $21.11 |
||
