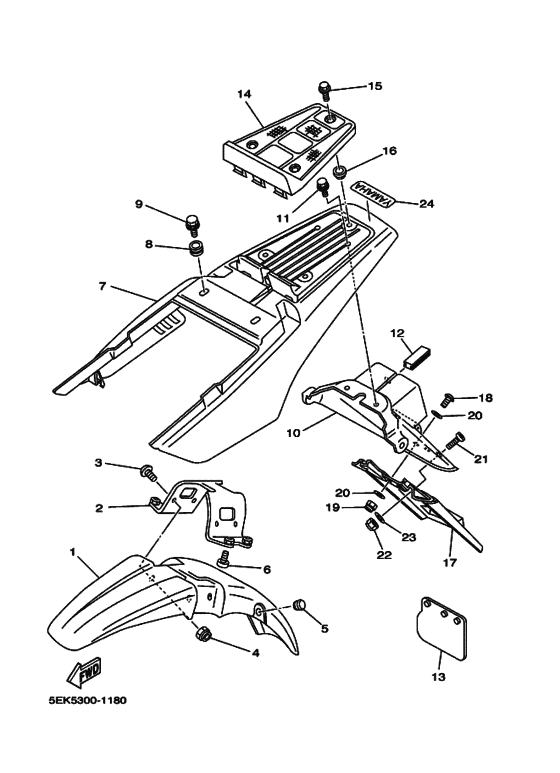

Fender Diagram Yamaha TW125
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EK5
- Sales region
- Europe (060)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2YG-21511-00-00 Fender, FrontYB |
2YG-21511-00-00 |
from US $74.47 |
||
|
2
|
2
2JX-21512-00-00 Bracket, Fender |
2JX-21512-00-00 |
from US $33.72 |
||
|
3
|
3
90154-05004-00 Screw, C.r. Binding (2T4) |
90154-05004-00 |
from US $1.70 |
||
| replacement | |||||
|
3
|
3
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
4
|
4
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
5
|
5
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $2.02 |
||
|
6
|
6
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
7
|
7
2YG-21611-00-00 Fender, RearYB |
2YG-21611-00-00 |
from US $138.16 |
||
|
8
|
8
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
9
|
9
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
10
|
10
5EK-21685-00-00
Bracket, License
|
5EK-21685-00-00 |
— | ||
|
11
|
11
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
11
|
11
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
11
|
11
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
12
|
12
2JX-21669-00-00 Seal |
2JX-21669-00-00 |
from US $2.55 |
||
|
13
|
13
34X-21691-00-00 Flap |
34X-21691-00-00 |
from US $17.57 |
||
|
14
|
14
2JX-21651-00-00
Cover, Rear Fender
|
2JX-21651-00-00 |
— | ||
|
15
|
15
950-27060-14-00 Bolt, Flange |
950-27060-14-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.52 |
||
|
16
|
16
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
16
|
16
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
17
|
17
5EK-21621-00-00
Flap
|
5EK-21621-00-00 |
— | ||
|
18
|
18
98907-04012-00 Screw, Binding |
98907-04012-00 |
from US $0.76 |
||
|
19
|
19
95607-04100-00 Nut, U |
95607-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
19
|
19
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
20
|
20
92907-04200-00 Washer |
92907-04200-00 |
from US $1.56 |
||
|
21
|
21
98907-05020-00 Screw, Binding |
98907-05020-00 |
from US $1.66 |
||
|
22
|
22
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
22
|
22
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
23
|
23
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
24
|
24
992-47000-80-00 Emblem, Yamaha |
992-47000-80-00 |
from US $7.76 |
||
