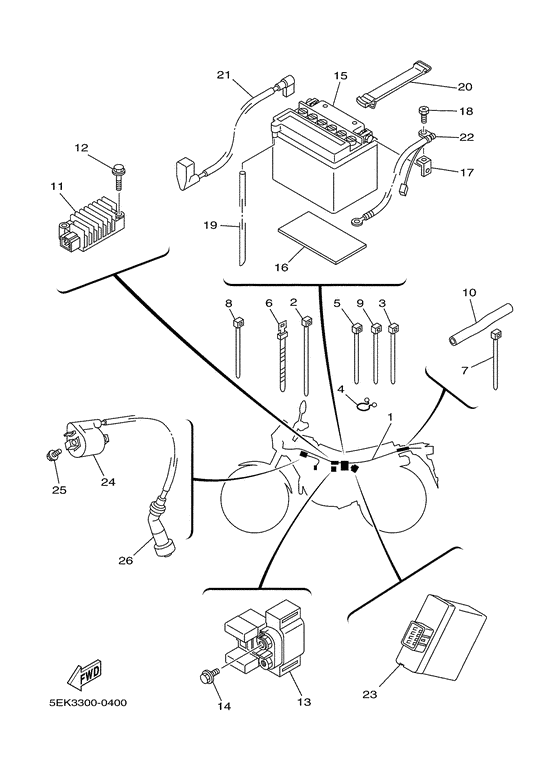

Electrical 1 Diagram Yamaha TW125
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EK5
- Sales region
- Austria (020)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EK-82590-00-00
Wire Harness Assy
|
5EK-82590-00-00 |
— | ||
|
02
|
02
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
02
|
02
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
03
|
03
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
04
|
04
341-82594-00-00 Clamp |
341-82594-00-00 |
from US $1.70 |
||
| replacement | |||||
|
04
|
04
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
05
|
05
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
06
|
06
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
07
|
07
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
08
|
08
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
09
|
09
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
10
|
10
90446-15377-00 Hose(4Cs) |
90446-15377-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
90446-15381-00 Hose |
90446-15381-00 |
from US $1.98 |
||
|
11
|
11
3TJ-81960-02-00 Rectifier & Regulator Assy |
3TJ-81960-02-00 |
from US $198.22 |
||
|
12
|
12
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
12
|
12
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
13
|
13
5EK-81940-00-00 Starter Relay Assy |
5EK-81940-00-00 |
from US $88.42 |
||
| replacement | |||||
|
13
|
13
5EK-81940-02-00 Starter Relay Assy (Rc19-022) |
5EK-81940-02-00 |
from US $88.42 |
||
|
14
|
14
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
15
|
15
1JE-82110-61-00
Gm7Cz3D Gs Battery
|
1JE-82110-61-00 |
— | ||
| replacements | |||||
|
15
|
15
GM7-CZ3D0-00-00
PIPE 6
|
GM7-CZ3D0-00-00 |
— | ||
|
15
|
15
907-9EY00-01-00
Battery (Yb7C-A)
|
907-9EY00-01-00 |
— | ||
|
15
|
15
YB7-CA000-00-00 Bat Yb7C-A Yu |
YB7-CA000-00-00 |
US $106.63 |
||
|
16
|
16
51Y-82122-00-00 Seat, Battery |
51Y-82122-00-00 |
from US $2.69 |
||
|
17
|
17
5LB-8215C-00-00 Terminal |
5LB-8215C-00-00 |
from US $7.93 |
||
|
18
|
18
90153-06001-00 Screw, Hexagon |
90153-06001-00 |
from US $1.70 |
||
|
19
|
19
90445-082F3-00 Hose (L1500) |
90445-082F3-00 |
from US $10.91 |
||
| replacement | |||||
|
19
|
19
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
20
|
20
18G-82131-00-00 Band, Battery |
18G-82131-00-00 |
US $7.37 |
||
| replacement | |||||
|
20
|
20
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
21
|
21
5EK-82115-00-00
Wire, Plus Lead
|
5EK-82115-00-00 |
— | ||
|
22
|
22
5EK-82116-02-00 Wire, Minus Lead |
5EK-82116-02-00 |
from US $14.03 |
||
|
23
|
23
5EK-85540-00-00 C.d.i. Unit Assy |
5EK-85540-00-00 |
US $212.27 |
||
| replacement | |||||
|
23
|
23
5EK-85540-09-00 C.d.i. Unit Assy |
5EK-85540-09-00 |
US $212.27 |
||
|
24
|
24
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
24
|
24
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
24
|
24
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
24
|
24
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
24
|
24
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
24
|
24
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
24
|
24
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
25
|
25
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
25
|
25
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
26
|
26
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
26
|
26
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
26
|
26
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
