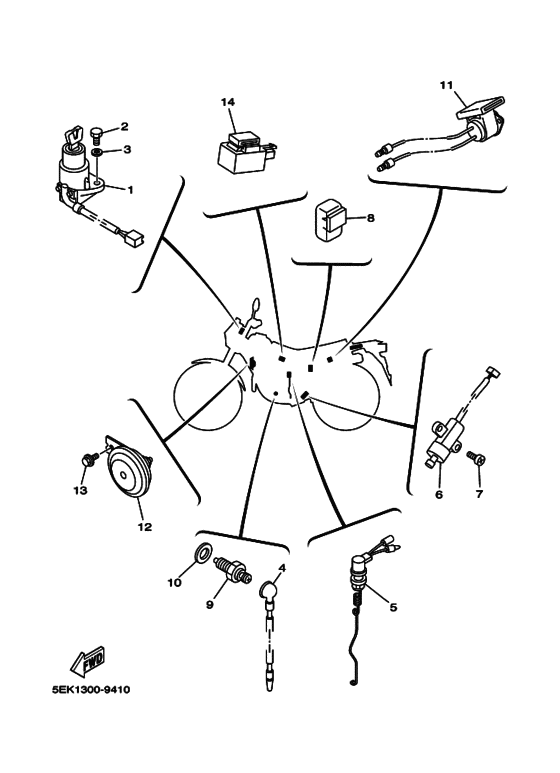

Electrical 2 Diagram Yamaha TW125
- Year
- 2002
- Colour
- Light Yellowish Gray Me 9 (LYNM9; 0752)
- Model code
- 5RS1
- Sales region
- Europe (050)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EK-82510-00-00 Main Switch Assy |
5EK-82510-00-00 |
US $115.31 |
||
| replacement | |||||
|
1
|
1
5EK-82510-01-00 Main Switch Assy |
5EK-82510-01-00 |
US $115.31 |
||
|
2
|
2
97007-06016-00 Bolt |
97007-06016-00 |
US $1.21 |
||
| replacement | |||||
|
2
|
2
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
3
|
3
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
4
|
4
5FY-82541-00-00 Wire, Lead |
5FY-82541-00-00 |
US $9.70 |
||
|
5
|
5
2JX-82530-02-00 Stop Switch Assy |
2JX-82530-02-00 |
from US $22.53 |
||
| replacements | |||||
|
5
|
5
5VC-82530-00-00 Stop Switch Assy |
5VC-82530-00-00 |
from US $22.53 |
||
|
5
|
5
5VC-82530-01-00 Stop Switch Assy |
5VC-82530-01-00 |
US $26.73 |
||
|
6
|
6
3LD-82566-60-00 Switch, Side Stand |
3LD-82566-60-00 |
from US $59.33 |
||
|
7
|
7
90157-05008-00 Screw, Pan Head |
90157-05008-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
8
|
8
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $35.70 |
||
|
9
|
9
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
10
|
10
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.66 |
||
|
11
|
11
3MW-82560-00-00 Thermo Switch Assy |
3MW-82560-00-00 |
US $43.60 |
||
|
12
|
12
4KG-83371-20-00 Horn |
4KG-83371-20-00 |
US $55.54 |
||
|
13
|
13
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
14
|
14
4MY-83350-01-00 Flasher Relay Assy |
4MY-83350-01-00 |
from US $51.12 |
||
| replacements | |||||
|
14
|
14
4MY-83350-02-00 Flasher Relay Assy |
4MY-83350-02-00 |
from US $51.12 |
||
|
14
|
14
4MY-83350-03-00 Flasher Relay Assy |
4MY-83350-03-00 |
US $58.16 |
||
