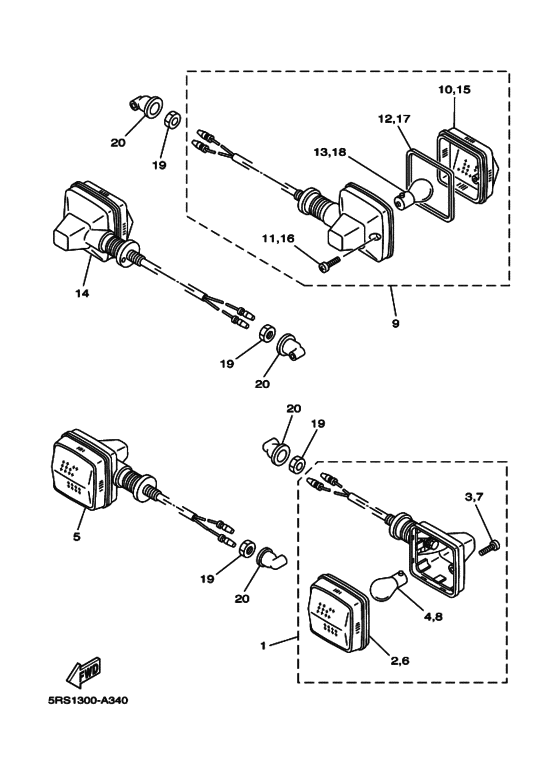

Flasher light Diagram Yamaha TW125
- Year
- 2002
- Colour
- Light Yellowish Gray Me 9 (LYNM9; 0752)
- Model code
- 5RS1
- Sales region
- Europe (050)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3YF-83310-01-00 Front Flasher Light Assy 1 |
3YF-83310-01-00 |
US $59.13 |
||
|
2
|
2
47J-83312-00-00 Lens, Flasher |
47J-83312-00-00 |
US $11.76 |
||
|
3
|
3
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
4
|
4
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
5
|
5
3YF-83320-01-00 Front Flasher Light Assy 2 |
3YF-83320-01-00 |
US $59.13 |
||
|
6
|
6
47J-83322-00-00 Lens, Flasher 2 |
47J-83322-00-00 |
US $11.76 |
||
|
7
|
7
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
8
|
8
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
9
|
9
3LD-83330-01-00 Rear Flasher Light Assy 1 |
3LD-83330-01-00 |
US $45.75 |
||
|
10
|
10
2KF-83332-00-00 Lens, Flasher |
2KF-83332-00-00 |
US $14.73 |
||
|
11
|
11
97707-40620-00 Screw, Pan Tap.2 Slit |
97707-40620-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
12
|
12
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
13
|
13
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
14
|
14
3LD-83340-01-00
Rear Flasher Light Assy 2
|
3LD-83340-01-00 |
— | ||
|
15
|
15
2KF-83342-00-00 Lens, Flasher 2 |
2KF-83342-00-00 |
US $14.73 |
||
|
16
|
16
97707-40620-00 Screw, Pan Tap.2 Slit |
97707-40620-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
17
|
17
47J-83313-00-00 Gasket, Flasher Lens |
47J-83313-00-00 |
US $3.26 |
||
|
18
|
18
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
19
|
19
95307-12700-00 Nut |
95307-12700-00 |
from US $2.35 |
||
| replacement | |||||
|
19
|
19
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
20
|
20
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $8.08 |
||
