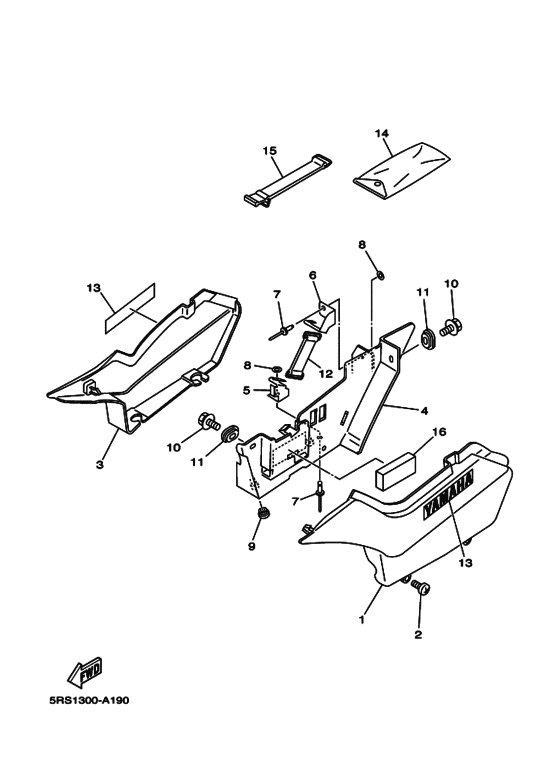

Side cover Diagram Yamaha TW125
- Year
- 2002
- Colour
- Light Yellowish Gray Me 9 (LYNM9; 0752)
- Model code
- 5RS1
- Sales region
- Europe (050)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2YG-21711-00-0X Cover, Side 1LGB |
2YG-21711-00-0X |
from US $68.94 |
||
|
2
|
2
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.81 |
||
|
3
|
3
2YG-21721-00-0X Cover, Side 2LGB |
2YG-21721-00-0X |
from US $68.94 |
||
|
4
|
4
5EK-2177A-00-00 Box |
5EK-2177A-00-00 |
from US $22.53 |
||
|
5
|
5
5EK-2175T-00-00 Bracket 1 |
5EK-2175T-00-00 |
from US $4.68 |
||
|
6
|
6
5EK-2175U-00-00 Bracket 2 |
5EK-2175U-00-00 |
from US $4.68 |
||
|
7
|
7
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
8
|
8
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
8
|
8
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
9
|
9
904-80131-97-00
Grommet
|
904-80131-97-00 |
— | ||
| replacement | |||||
|
9
|
9
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.50 |
||
|
10
|
10
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
10
|
10
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
10
|
10
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
11
|
11
904-80011-41-00
Grommet
|
904-80011-41-00 |
— | ||
| replacement | |||||
|
11
|
11
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
12
|
12
116-82131-00-00 Band, Battery |
116-82131-00-00 |
from US $10.48 |
||
|
13
|
13
99247-00100-00 Emblem, Yamaha |
99247-00100-00 |
from US $10.48 |
||
|
14
|
14
2JX-28100-00-00 Tool Kit |
2JX-28100-00-00 |
from US $51.06 |
||
|
15
|
15
3TJ-82131-00-00 Band, Battery |
3TJ-82131-00-00 |
from US $10.96 |
||
|
16
|
16
1YW-21638-00-00 Damper |
1YW-21638-00-00 |
from US $2.50 |
||
