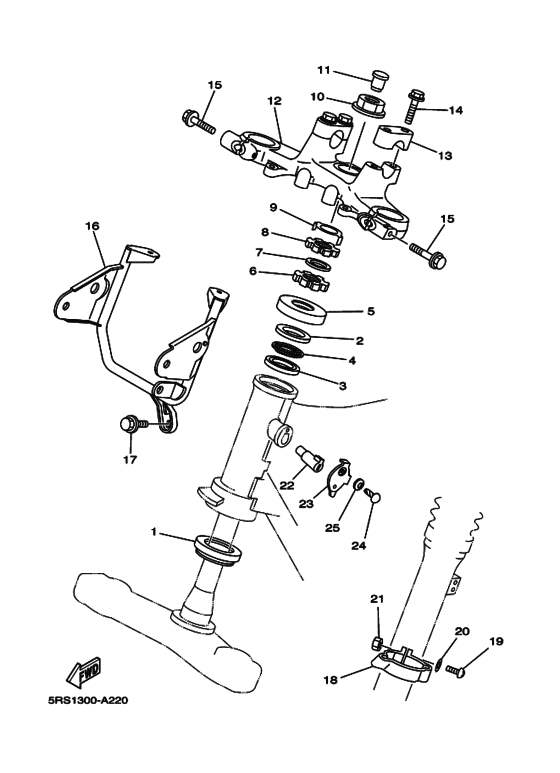

Steering Diagram Yamaha TW125
- Year
- 2002
- Colour
- Light Yellowish Gray Me 9 (LYNM9; 0752)
- Model code
- 5RS1
- Sales region
- Europe (050)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93399-99942-00 Bearing |
93399-99942-00 |
from US $36.49 |
||
|
2
|
2
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
2
|
2
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
3
|
3
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
3
|
3
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
4
|
4
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
4
|
4
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $14.14 |
||
|
5
|
5
36X-23416-00-00 Cover, Ball Race 2 |
36X-23416-00-00 |
from US $12.62 |
||
|
6
|
6
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
6
|
6
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
6
|
6
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
7
|
7
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
8
|
8
901-79256-15-00
Nut
|
901-79256-15-00 |
— | ||
| replacement | |||||
|
8
|
8
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
9
|
9
3YF-23418-00-00 Washer, Special |
3YF-23418-00-00 |
from US $7.65 |
||
|
10
|
10
90179-22412-00 Nut |
90179-22412-00 |
from US $8.64 |
||
| replacement | |||||
|
10
|
10
901-79220-05-00 Nut |
901-79220-05-00 |
from US $22.22 |
||
|
11
|
11
90338-16148-00 Plug |
90338-16148-00 |
from US $2.09 |
||
|
12
|
12
2JX-23435-00-35 Crown, HandleSL |
2JX-23435-00-35 |
from US $103.21 |
||
| replacement | |||||
|
12
|
12
2JX-23435-10-35 SL |
2JX-23435-10-35 |
from US $103.21 |
||
|
13
|
13
1E6-23441-10-35 Holder, Handle UpperSL |
1E6-23441-10-35 |
from US $17.85 |
||
|
14
|
14
95824-08035-00 Bolt, Flange |
95824-08035-00 |
from US $2.91 |
||
| replacement | |||||
|
14
|
14
95814-08035-00 Bolt, Flange(4Fm) |
95814-08035-00 |
from US $2.69 |
||
|
15
|
15
95024-08050-00 Bolt, Flange (Small Head) |
95024-08050-00 |
from US $1.56 |
||
|
16
|
16
5RS-23174-00-00
Stay, Headlight
|
5RS-23174-00-00 |
— | ||
|
17
|
17
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
18
|
18
34X-23317-00-00 Holder, Cable |
34X-23317-00-00 |
from US $6.52 |
||
|
19
|
19
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
20
|
20
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
21
|
21
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
21
|
21
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
|
23
|
23
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
24
|
24
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
25
|
25
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
