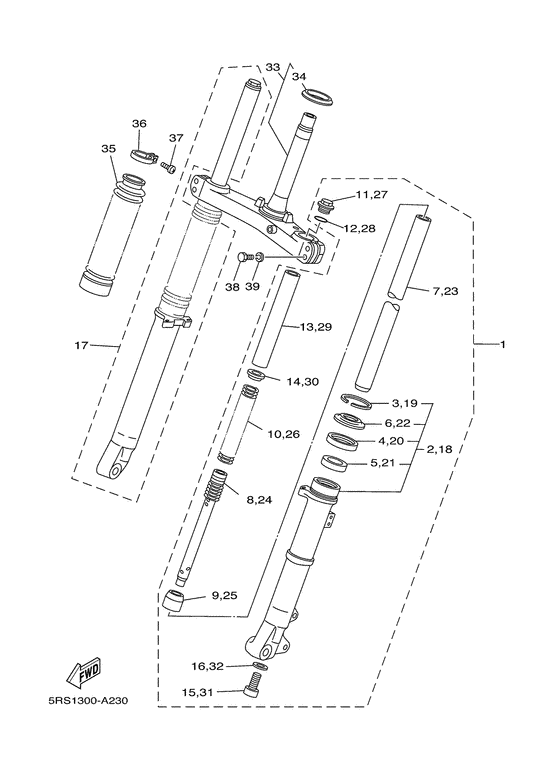

Front fork Diagram Yamaha TW125
- Year
- 2002
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS1
- Sales region
- Austria (010)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RS-23102-00-00
Front Fork Assy (L.h)
|
5RS-23102-00-00 |
— | ||
|
02
|
02
5EK-23126-00-00 Tube, Outer (L.h) |
5EK-23126-00-00 |
from US $212.77 |
||
| replacement | |||||
|
02
|
02
5RS-23126-10-00 Tube, Outer (L.h) |
5RS-23126-10-00 |
from US $212.77 |
||
|
03
|
03
22W-23153-L0-00 Ring, Snap |
22W-23153-L0-00 |
from US $4.25 |
||
|
04
|
04
22W-23145-L0-00 Oil Seal |
22W-23145-L0-00 |
from US $16.01 |
||
|
05
|
05
51Y-23125-00-00 Metal, Slide 1 |
51Y-23125-00-00 |
from US $11.33 |
||
|
06
|
06
54G-23144-00-00 Seal, Dust |
54G-23144-00-00 |
from US $10.63 |
||
|
07
|
07
5RS-23110-00-00 Inner Tube Comp.1 |
5RS-23110-00-00 |
US $285.99 |
||
|
08
|
08
5RS-23170-00-00
Cylinder Comp., Front Fork
|
5RS-23170-00-00 |
— | ||
|
09
|
09
3R6-23173-L0-00 Spindle, Taper |
3R6-23173-L0-00 |
from US $12.61 |
||
| replacement | |||||
|
09
|
09
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
10
|
10
5RS-23141-00-00
Spring, Front Fork
|
5RS-23141-00-00 |
— | ||
|
11
|
11
2JN-23111-00-00 Bolt, Cap |
2JN-23111-00-00 |
from US $33.72 |
||
|
12
|
12
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
13
|
13
22U-23118-01-00 Spacer |
22U-23118-01-00 |
from US $7.65 |
||
|
14
|
14
3DM-23149-10-00 Washer, Spring Upper |
3DM-23149-10-00 |
from US $4.96 |
||
|
15
|
15
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
15
|
15
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
16
|
16
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
17
|
17
5RS-23103-00-00
Front Fork Assy (R.h)
|
5RS-23103-00-00 |
— | ||
|
18
|
18
5EK-23136-00-00 Tube, Outer 2 |
5EK-23136-00-00 |
from US $212.77 |
||
| replacement | |||||
|
18
|
18
5RS-23136-10-00 Tube, Outer (R.h) |
5RS-23136-10-00 |
from US $212.77 |
||
|
19
|
19
22W-23153-L0-00 Ring, Snap |
22W-23153-L0-00 |
from US $4.25 |
||
|
20
|
20
22W-23145-L0-00 Oil Seal |
22W-23145-L0-00 |
from US $16.01 |
||
|
21
|
21
51Y-23125-00-00 Metal, Slide 1 |
51Y-23125-00-00 |
from US $11.33 |
||
|
22
|
22
54G-23144-00-00 Seal, Dust |
54G-23144-00-00 |
from US $10.63 |
||
|
23
|
23
5RS-23110-00-00 Inner Tube Comp.1 |
5RS-23110-00-00 |
US $285.99 |
||
|
24
|
24
5RS-23170-00-00
Cylinder Comp., Front Fork
|
5RS-23170-00-00 |
— | ||
|
25
|
25
3R6-23173-L0-00 Spindle, Taper |
3R6-23173-L0-00 |
from US $12.61 |
||
| replacement | |||||
|
25
|
25
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
26
|
26
5RS-23141-00-00
Spring, Front Fork
|
5RS-23141-00-00 |
— | ||
|
27
|
27
2JN-23111-00-00 Bolt, Cap |
2JN-23111-00-00 |
from US $33.72 |
||
|
28
|
28
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
29
|
29
22U-23118-01-00 Spacer |
22U-23118-01-00 |
from US $7.65 |
||
|
30
|
30
3DM-23149-10-00 Washer, Spring Upper |
3DM-23149-10-00 |
from US $4.96 |
||
|
31
|
31
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
31
|
31
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
32
|
32
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
33
|
33
5EK-23340-00-00 Under Bracket Comp |
5EK-23340-00-00 |
US $292.58 |
||
| replacement | |||||
|
33
|
33
5EK-23340-01-00 Under Bracket Comp |
5EK-23340-01-00 |
US $292.58 |
||
|
34
|
34
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
35
|
35
4CS-23191-20-00 Boot |
4CS-23191-20-00 |
from US $47.39 |
||
|
36
|
36
2K5-23192-00-00 Band |
2K5-23192-00-00 |
from US $13.18 |
||
|
37
|
37
1W4-23194-L0-00 Screw, Boot Band |
1W4-23194-L0-00 |
from US $4.53 |
||
|
38
|
38
97321-08035-00 Bolt |
97321-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
38
|
38
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
39
|
39
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
39
|
39
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
