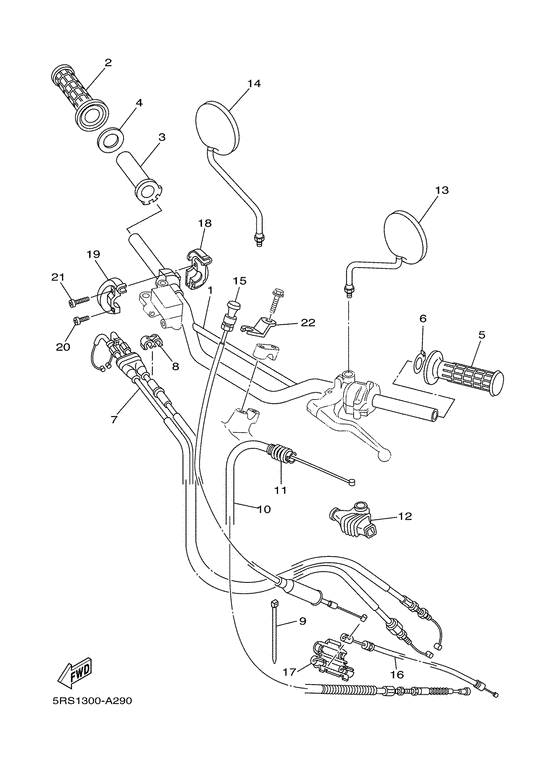

Steering handle & cable Diagram Yamaha TW125
- Year
- 2002
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS1
- Sales region
- Austria (010)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RS-26111-00-00 Handlebar |
5RS-26111-00-00 |
US $98.82 |
||
|
02
|
02
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $14.31 |
||
|
03
|
03
5BE-26243-00-00 Tube, Throttle Guide |
5BE-26243-00-00 |
from US $7.93 |
||
|
04
|
04
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $2.98 |
||
|
05
|
05
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $14.31 |
||
|
06
|
06
4RR-26129-00-00 Washer |
4RR-26129-00-00 |
from US $7.93 |
||
|
07
|
07
5LB-26302-01-00 Throttle Cable Assy |
5LB-26302-01-00 |
from US $63.86 |
||
| replacements | |||||
|
07
|
07
5LB-26302-02-00 Throttle Cable Assy |
5LB-26302-02-00 |
from US $44.80 |
||
|
07
|
07
5LB-26302-03-00 THROTTLE CABLE ASSY |
5LB-26302-03-00 |
from US $58.59 |
||
|
08
|
08
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.70 |
||
|
09
|
09
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
09
|
09
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
10
|
10
5EK-26335-00-00 Cable, clutch |
5EK-26335-00-00 |
from US $30.18 |
||
|
11
|
11
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
12
|
12
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $12.89 |
||
|
13
|
13
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) |
55V-26280-00-00 |
from US $51.12 |
||
|
14
|
14
55V-26290-00-00 Rear View Mirror Assy (Right) |
55V-26290-00-00 |
US $51.12 |
||
|
15
|
15
5EK-26331-10-00
Cable, Starter 1
|
5EK-26331-10-00 |
— | ||
|
16
|
16
5RS-26334-00-00
Cable, Starter 2
|
5RS-26334-00-00 |
— | ||
|
17
|
17
53L-26261-01-00 Connector, Cable |
53L-26261-01-00 |
from US $11.33 |
||
|
18
|
18
3LN-26281-01-00 Cap, Grip Upper |
3LN-26281-01-00 |
from US $28.76 |
||
|
19
|
19
3LN-26282-01-00 Cap, Grip Lower |
3LN-26282-01-00 |
from US $28.76 |
||
|
20
|
20
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.36 |
||
|
21
|
21
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
22
|
22
4BE-2637G-10-00 Holder, Wire |
4BE-2637G-10-00 |
from US $21.11 |
||
