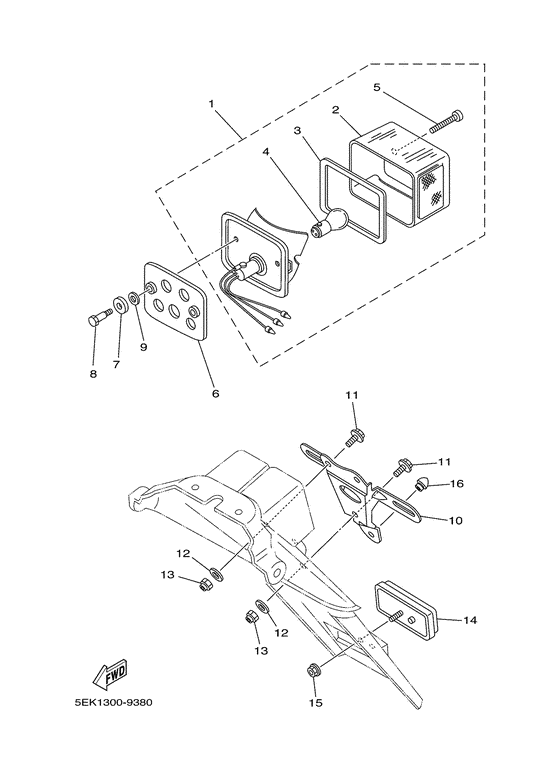

Taillight Diagram Yamaha TW125
- Year
- 2002
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS1
- Sales region
- Austria (010)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
56U-84710-41-00 Taillight Unit Assy |
56U-84710-41-00 |
US $61.20 |
||
|
02
|
02
1M8-84521-40-00 Lens, Taillight |
1M8-84521-40-00 |
from US $37.89 |
||
| replacement | |||||
|
02
|
02
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $44.69 |
||
|
03
|
03
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
03
|
03
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
04
|
04
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
04
|
04
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $4.96 |
||
|
05
|
05
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
05
|
05
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
05
|
05
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
06
|
06
4L0-84753-00-00 Damper |
4L0-84753-00-00 |
from US $10.91 |
||
|
07
|
07
90209-08125-00 Washer |
90209-08125-00 |
from US $3.26 |
||
|
08
|
08
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
09
|
09
90201-083A0-00 Washer, Plate |
90201-083A0-00 |
from US $1.98 |
||
|
10
|
10
2JL-21685-00-00 Bracket, License |
2JL-21685-00-00 |
US $77.51 |
||
|
11
|
11
95807-06016-00 Bolt, Flange |
95807-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
12
|
12
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
13
|
13
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
14
|
14
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
|
15
|
15
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
16
|
16
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
