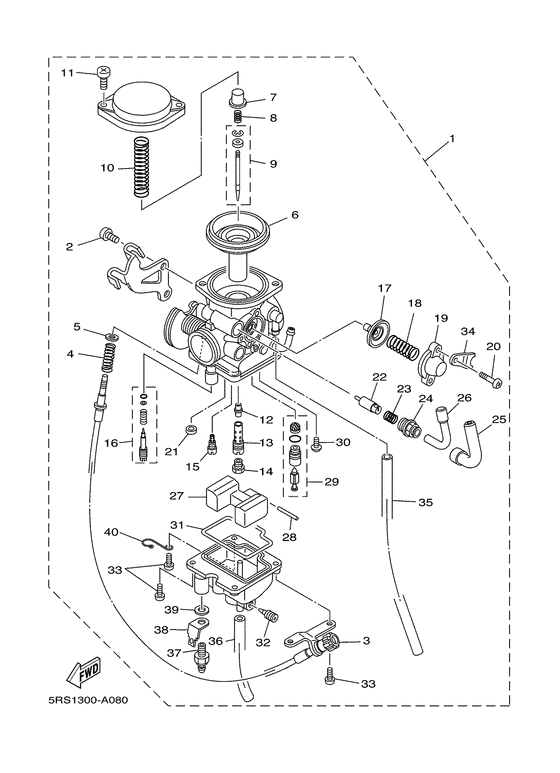

Carburetor Diagram Yamaha TW125
- Year
- 2002
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS1
- Sales region
- Portugal (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RS-14301-00-00
Carburetor Assy 1
|
5RS-14301-00-00 |
— | ||
|
02
|
02
97801-05010-00 Screw, Pan Head |
97801-05010-00 |
US $1.07 |
||
| replacement | |||||
|
02
|
02
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
03
|
03
5LB-14321-00-00 Screw, Throttle |
5LB-14321-00-00 |
from US $46.28 |
||
|
04
|
04
2JX-14333-00-00 Spring, Throttle Stop |
2JX-14333-00-00 |
from US $4.11 |
||
|
05
|
05
5LB-14357-00-00 Washer, Plain |
5LB-14357-00-00 |
from US $1.84 |
||
|
06
|
06
5LB-1434A-00-00 Suction Piston Assy |
5LB-1434A-00-00 |
from US $69.91 |
||
|
07
|
07
5LB-14936-00-00 Seat, Spring |
5LB-14936-00-00 |
from US $12.33 |
||
|
08
|
08
5LB-14275-00-00 Spring |
5LB-14275-00-00 |
from US $1.84 |
||
|
09
|
09
5RS-14336-00-00 Needle |
5RS-14336-00-00 |
US $27.61 |
||
|
10
|
10
5RS-14286-00-00
Spring
|
5RS-14286-00-00 |
— | ||
|
11
|
11
5LB-14216-00-00 Screw |
5LB-14216-00-00 |
from US $2.13 |
||
|
12
|
12
5RS-14341-00-00 Nozzle, Main |
5RS-14341-00-00 |
US $36.75 |
||
|
13
|
13
5RS-14341-10-00
Bleed, Nozzle Mai
|
5RS-14341-10-00 |
— | ||
|
14
|
14
288-14343-67-00
Jet, Main
|
288-14343-67-00 |
— | ||
| replacement | |||||
|
14
|
14
288-14355-67-00
Jet, Main (#134) (85L)
|
288-14355-67-00 |
— | ||
|
15
|
15
5LB-14342-17-00 Jet, Pilot (#34) |
5LB-14342-17-00 |
from US $22.93 |
||
|
16
|
16
5RS-14105-00-00 Pilot Screw Set |
5RS-14105-00-00 |
US $26.49 |
||
|
17
|
17
5LB-14368-00-00 Diaphragm Assy 1 |
5LB-14368-00-00 |
from US $44.02 |
||
|
18
|
18
5RS-14589-00-00
Spring
|
5RS-14589-00-00 |
— | ||
|
19
|
19
5LB-14293-00-00 Cover 1 |
5LB-14293-00-00 |
from US $16.15 |
||
|
20
|
20
214-24535-00-00 Screw, Lever Fitting |
214-24535-00-00 |
from US $2.98 |
||
|
21
|
21
50M-14355-00-00
Plug
|
50M-14355-00-00 |
— | ||
| replacement | |||||
|
21
|
21
50M-14355-01-00 PLUG |
50M-14355-01-00 |
from US $2.70 |
||
|
22
|
22
5RS-14371-00-00 Plunger, Starter |
5RS-14371-00-00 |
US $26.14 |
||
|
23
|
23
5RS-14335-00-00 Spring, Plunger |
5RS-14335-00-00 |
US $4.94 |
||
| replacement | |||||
|
23
|
23
5XT-14335-00-00 Spring, Plunger |
5XT-14335-00-00 |
from US $5.24 |
||
|
24
|
24
5RS-14364-00-00 Cap, StarterCap, starter |
5RS-14364-00-00 |
US $33.44 |
||
|
25
|
25
5EK-14363-00-00 CapCap |
5EK-14363-00-00 |
US $16.59 |
||
|
26
|
26
5EK-14318-00-00
Pipe Starter
|
5EK-14318-00-00 |
— | ||
|
27
|
27
5LB-14385-00-00 Float |
5LB-14385-00-00 |
from US $33.72 |
||
|
28
|
28
5LB-14386-00-00 Pin, Float |
5LB-14386-00-00 |
from US $3.12 |
||
|
29
|
29
5LB-14390-00-00 Needle Valve Assy |
5LB-14390-00-00 |
from US $41.17 |
||
|
30
|
30
989-01040-06-00
Screw,bind
|
989-01040-06-00 |
— | ||
| replacement | |||||
|
30
|
30
98980-04006-00 Screw, Bind |
98980-04006-00 |
from US $1.42 |
||
|
31
|
31
5LB-14384-00-00 Gasket, Float Chamber |
5LB-14384-00-00 |
from US $8.05 |
||
|
32
|
32
4JP-14323-00-00 Air Screw Set |
4JP-14323-00-00 |
from US $9.36 |
||
| replacement | |||||
|
32
|
32
4JP-14104-00-00 Air Screw Set |
4JP-14104-00-00 |
from US $10.94 |
||
|
33
|
33
5LB-14592-00-00 Screw |
5LB-14592-00-00 |
from US $1.84 |
||
|
34
|
34
5LB-14292-00-00 Bracket 2 |
5LB-14292-00-00 |
from US $5.38 |
||
|
35
|
35
5FY-14197-00-00 Pipe |
5FY-14197-00-00 |
from US $7.51 |
||
| replacement | |||||
|
35
|
35
5LB-14197-00-00 Pipe |
5LB-14197-00-00 |
from US $9.90 |
||
|
36
|
36
5FY-14196-00-00 Pipe, Over Flow 1 |
5FY-14196-00-00 |
US $10.15 |
||
|
37
|
37
4TR-83790-00-00
Heater Assy (15W)
|
4TR-83790-00-00 |
— | ||
| replacement | |||||
|
37
|
37
5FU-83790-00-00 Heater Assy |
5FU-83790-00-00 |
US $27.20 |
||
|
38
|
38
5FU-82103-00-00 Terminal 1 |
5FU-82103-00-00 |
from US $1.84 |
||
|
39
|
39
90201-08016-00 Washer, Plate |
90201-08016-00 |
from US $1.70 |
||
|
40
|
40
5GM-14243-00-00 Clamp |
5GM-14243-00-00 |
US $4.84 |
||
