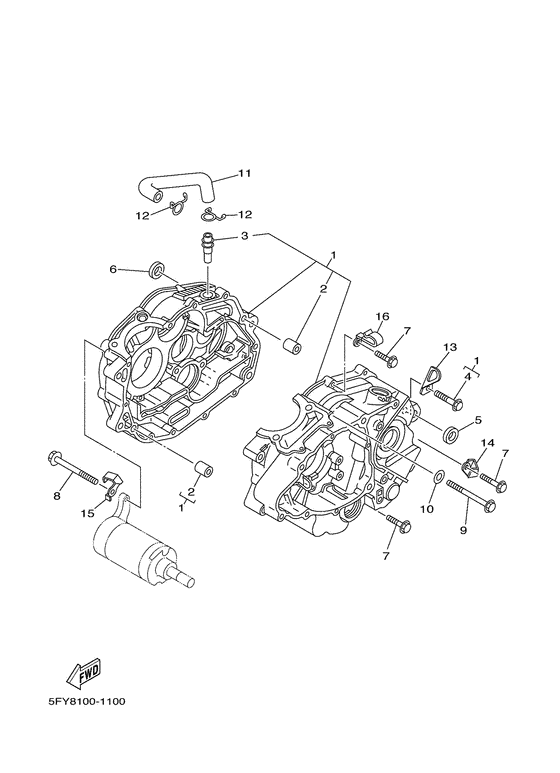

Crankcase Diagram Yamaha TW125
- Year
- 2002
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS1
- Sales region
- Portugal (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EK-15100-01-00
Crankcase Assy
|
5EK-15100-01-00 |
— | ||
|
02
|
02
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
03
|
03
371-11167-01-00 Pipe, Breather 2 |
371-11167-01-00 |
from US $8.36 |
||
|
04
|
04
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
05
|
05
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
06
|
06
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
07
|
07
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
08
|
08
95027-06090-00 Bolt, Flange |
95027-06090-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
95022-06090-00 Bolt, Flange |
95022-06090-00 |
from US $1.52 |
||
|
09
|
09
95027-06085-00 Bolt, Flange |
95027-06085-00 |
from US $1.56 |
||
|
10
|
10
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
11
|
11
3Y1-11166-00-00 Pipe, Breather 1 |
3Y1-11166-00-00 |
from US $11.05 |
||
|
12
|
12
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
13
|
13
90465-08020-00 Clamp |
90465-08020-00 |
from US $4.68 |
||
|
14
|
14
90462-08225-00 Clamp |
90462-08225-00 |
from US $6.11 |
||
|
15
|
15
90462-08224-00 Clamp |
90462-08224-00 |
from US $4.82 |
||
|
16
|
16
90465-08127-00 Clamp |
90465-08127-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
