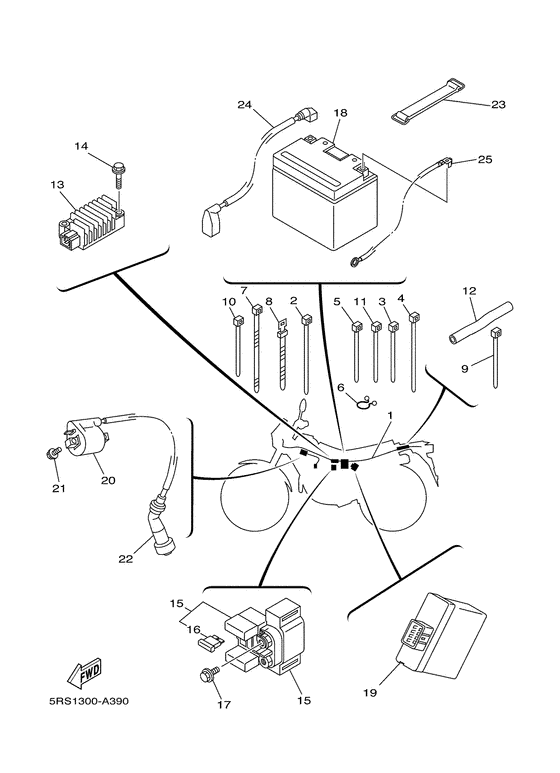

Electrical 1 Diagram Yamaha TW125
- Year
- 2002
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS1
- Sales region
- Portugal (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RS-82590-00-00
Wire Harness Assy
|
5RS-82590-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5RS-82590-01-00
Wire Harness Assy
|
5RS-82590-01-00 |
— | ||
|
02
|
02
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
02
|
02
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
03
|
03
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
04
|
04
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
04
|
04
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
05
|
05
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
06
|
06
341-82594-00-00 Clamp |
341-82594-00-00 |
from US $1.70 |
||
| replacement | |||||
|
06
|
06
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
|
07
|
07
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
08
|
08
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
09
|
09
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
10
|
10
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
11
|
11
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
12
|
12
90446-15377-00 Hose(4Cs) |
90446-15377-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
90446-15381-00 Hose |
90446-15381-00 |
from US $1.98 |
||
|
13
|
13
3TJ-81960-02-00 Rectifier & Regulator Assy |
3TJ-81960-02-00 |
from US $198.22 |
||
|
14
|
14
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
15
|
15
5EK-81940-00-00 Starter Relay Assy |
5EK-81940-00-00 |
from US $88.42 |
||
| replacement | |||||
|
15
|
15
5EK-81940-02-00 Starter Relay Assy (Rc19-022) |
5EK-81940-02-00 |
from US $88.42 |
||
|
16
|
16
2GH-82151-00-00 Fuse (20A) |
2GH-82151-00-00 |
from US $2.13 |
||
| replacement | |||||
|
16
|
16
2GV-82151-00-00 Fuse (20A-Bl) |
2GV-82151-00-00 |
from US $1.70 |
||
|
17
|
17
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.52 |
||
|
18
|
18
4TP-82100-10-00
Ytz7S He Yuasa Batt
|
4TP-82100-10-00 |
— | ||
| replacements | |||||
|
18
|
18
YTZ-7SHE0-00-00
YB16CLB YUASA BATTERY
|
YTZ-7SHE0-00-00 |
— | ||
|
18
|
18
BTY-GTZ7S-00-00
Battery gtz7s
|
BTY-GTZ7S-00-00 |
— | ||
|
18
|
18
YTZ-7S000-00-00
Battery Ytz7S (Ptz7S) Yu
|
YTZ-7S000-00-00 |
— | ||
|
19
|
19
5EK-85540-00-00 C.d.i. Unit Assy |
5EK-85540-00-00 |
US $212.27 |
||
| replacement | |||||
|
19
|
19
5EK-85540-09-00 C.d.i. Unit Assy |
5EK-85540-09-00 |
US $212.27 |
||
|
20
|
20
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
20
|
20
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
20
|
20
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
20
|
20
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
20
|
20
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
20
|
20
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
20
|
20
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
21
|
21
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
21
|
21
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
22
|
22
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
22
|
22
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
22
|
22
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
23
|
23
2T4-82131-00-00 Band, Battery |
2T4-82131-00-00 |
from US $9.78 |
||
|
24
|
24
5RS-82115-00-00
Wire, Plus Lead
|
5RS-82115-00-00 |
— | ||
|
25
|
25
5RS-82116-00-00
Wire, Minus Lead
|
5RS-82116-00-00 |
— | ||
