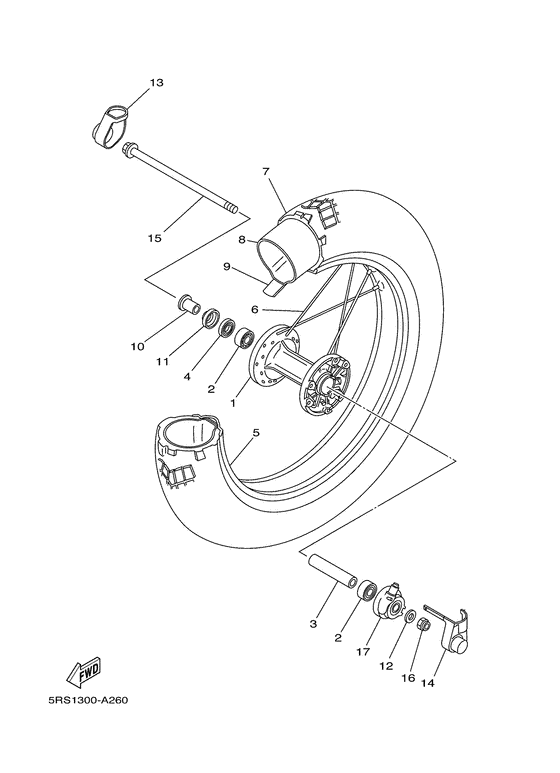

Front wheel Diagram Yamaha TW125
- Year
- 2002
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS1
- Sales region
- Portugal (090)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EK-25111-00-00 Hub, Front |
5EK-25111-00-00 |
from US $167.17 |
||
|
02
|
02
93306-20203-00 Bearing |
93306-20203-00 |
from US $15.44 |
||
| replacement | |||||
|
02
|
02
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
03
|
03
90560-15312-00 Spacer |
90560-15312-00 |
from US $27.49 |
||
|
04
|
04
93102-20281-00 Oil Seal |
93102-20281-00 |
from US $3.89 |
||
|
05
|
05
94425-18603-00 Rim (2.50-18) |
94425-18603-00 |
from US $397.44 |
||
|
06
|
06
4TP-25304-10-00 Spoke Set, Rear |
4TP-25304-10-00 |
from US $90.08 |
||
|
07
|
07
94113-18009-00
Tire (130/80-18M/c66P Tw-203)
Bridgestone |
94113-18009-00 |
— | ||
|
08
|
08
94213-18232-00 Tube (130/80-18 M/c Tr4)Bridgestone |
94213-18232-00 |
US $38.10 |
||
| replacement | |||||
|
08
|
08
94212-18188-00 Tube (110-140/80-100-18 M/c)Tube Bridgestone |
94212-18188-00 |
US $39.29 |
||
|
09
|
09
94340-18086-00 Band, Rim (2.50-18)Bridgestone |
94340-18086-00 |
from US $4.72 |
||
|
10
|
10
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
11
|
11
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
12
|
12
90201-14740-00 Washer, Plate |
90201-14740-00 |
from US $1.70 |
||
|
13
|
13
5RS-2512A-00-00
Cap, Wheel
|
5RS-2512A-00-00 |
— | ||
|
14
|
14
5RS-25188-00-00
Cap
|
5RS-25188-00-00 |
— | ||
|
15
|
15
2JX-25181-10-00 Axle, Wheel |
2JX-25181-10-00 |
from US $34.99 |
||
| replacement | |||||
|
15
|
15
2JX-25181-00-00 Axle, Wheel |
2JX-25181-00-00 |
from US $34.99 |
||
|
16
|
16
95607-14100-00 Nut, U (Jn5) |
95607-14100-00 |
from US $7.92 |
||
| replacement | |||||
|
16
|
16
95617-14100-00 Nut, U |
95617-14100-00 |
from US $10.98 |
||
|
17
|
17
5EK-25190-00-00 Gear Unit Assy |
5EK-25190-00-00 |
from US $75.44 |
||
