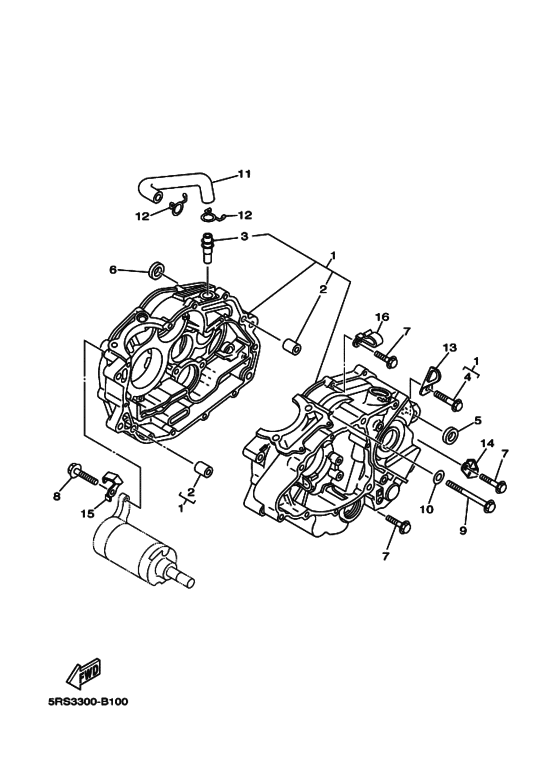

Crankcase Diagram Yamaha TW125
- Year
- 2003
- Colour
- Reddish Yellow Cocktail 1 (RYC1; 0251)
- Model code
- 5RS3
- Sales region
- Europe (030)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EK-15100-01-00
Crankcase Assy
|
5EK-15100-01-00 |
— | ||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
371-11167-01-00 Pipe, Breather 2 |
371-11167-01-00 |
from US $8.36 |
||
|
4
|
4
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
5
|
5
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
6
|
6
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
7
|
7
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
8
|
8
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
9
|
9
95027-06085-00 Bolt, Flange |
95027-06085-00 |
from US $1.56 |
||
|
10
|
10
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
11
|
11
3Y1-11166-00-00 Pipe, Breather 1 |
3Y1-11166-00-00 |
from US $11.05 |
||
|
12
|
12
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
13
|
13
90465-08020-00 Clamp |
90465-08020-00 |
from US $4.68 |
||
|
14
|
14
90462-08225-00 Clamp |
90462-08225-00 |
from US $6.11 |
||
|
15
|
15
90462-08224-00 Clamp |
90462-08224-00 |
from US $4.82 |
||
|
16
|
16
90465-08127-00 Clamp |
90465-08127-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
