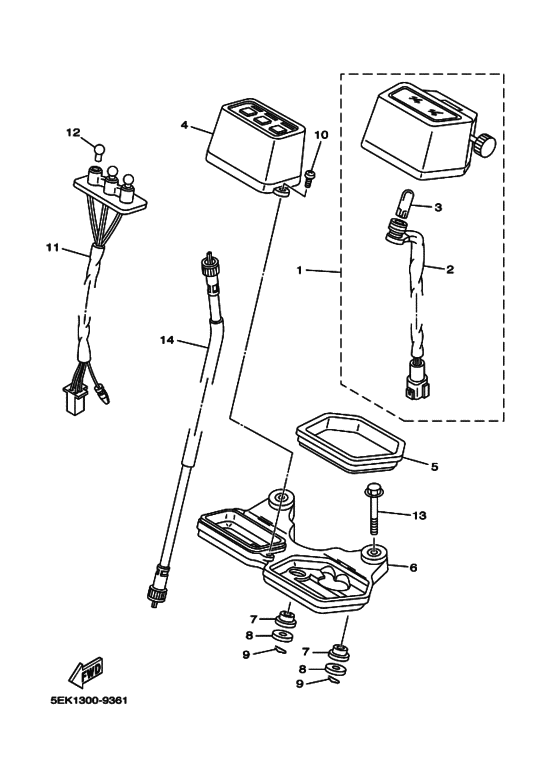

Meter Diagram Yamaha TW125
- Year
- 2003
- Colour
- Reddish Yellow Cocktail 1 (RYC1; 0251)
- Model code
- 5RS3
- Sales region
- Europe (030)
- Engine Capacity
- 125
- Color Variant
- C
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3RM-83570-60-00 Speedometer Assy (Km/h)Speedometer assy (km/h) UR |
3RM-83570-60-00 |
US $268.20 |
||
|
1
|
1
5RS-83570-00-00
Speedometer Assy (Mph)
UR FOR GBR |
5RS-83570-00-00 |
— | ||
|
2
|
2
3RM-83536-00-00 Socket, Meter |
3RM-83536-00-00 |
US $53.61 |
||
|
3
|
3
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W T-10 |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
3
|
3
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T-10 |
4G1-84744-00-XX |
— | ||
|
4
|
4
5EK-83568-00-00 Pilot Box, Upper |
5EK-83568-00-00 |
from US $21.08 |
||
|
5
|
5
5Y1-83513-00-00 Damper |
5Y1-83513-00-00 |
from US $18.99 |
||
|
6
|
6
15A-83519-00-00 Bracket, Meter |
15A-83519-00-00 |
from US $35.22 |
||
|
7
|
7
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
7
|
7
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
8
|
8
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
9
|
9
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
9
|
9
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
10
|
10
90164-04008-00 Screw, Tapping |
90164-04008-00 |
from US $2.55 |
||
|
11
|
11
5EK-83509-00-00 Socket Cord Assy |
5EK-83509-00-00 |
US $105.42 |
||
|
12
|
12
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
12
|
12
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
13
|
13
95804-06040-00 Bolt, Flange |
95804-06040-00 |
US $2.27 |
||
| replacement | |||||
|
13
|
13
95814-06040-00 Bolt, Flange |
95814-06040-00 |
US $2.27 |
||
|
14
|
14
5LB-83550-00-00 Speedometer Cable Assy |
5LB-83550-00-00 |
from US $27.20 |
||
