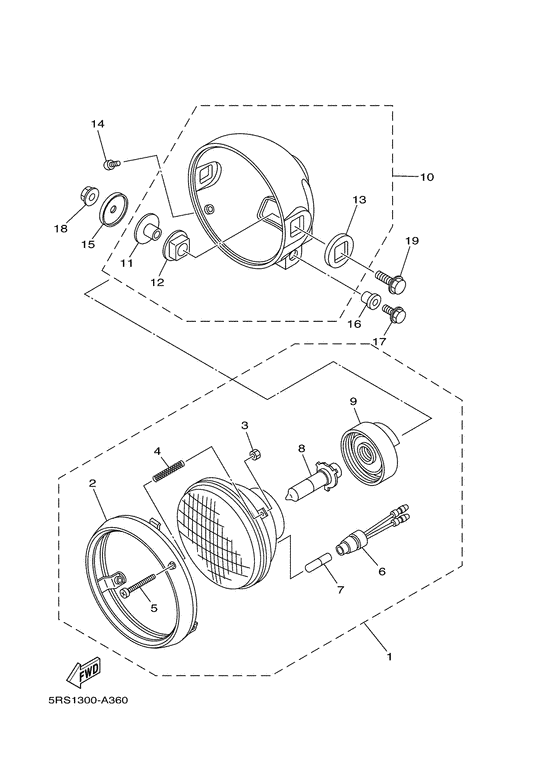

Headlight Diagram Yamaha TW125
- Year
- 2003
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS3
- Sales region
- Spain (020)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RS-84310-00-00 Headlight Unit Assy |
5RS-84310-00-00 |
US $310.73 |
||
|
02
|
02
42X-84315-01-00 Rim, Headlight |
42X-84315-01-00 |
from US $69.49 |
||
|
03
|
03
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
04
|
04
1A0-84332-60-00 Spring, Screw |
1A0-84332-60-00 |
from US $10.81 |
||
| replacement | |||||
|
04
|
04
447-84332-60-00 Spring, Screw |
447-84332-60-00 |
from US $10.75 |
||
|
05
|
05
341-84331-60-00
Screw, Adjusting
|
341-84331-60-00 |
— | ||
| replacement | |||||
|
05
|
05
901-57040-01-00 Screw, Rim Adjusting |
901-57040-01-00 |
from US $6.23 |
||
|
06
|
06
5JX-84312-00-00 Cord AssyHolder, socket |
5JX-84312-00-00 |
US $17.33 |
||
|
07
|
07
4E2-84347-00-00 Bulb (12V-4W) |
4E2-84347-00-00 |
US $4.82 |
||
|
08
|
08
2F9-84314-00-00 Bulb (12V 60/55W Halogen)(h4)halogen |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
08
|
08
5V2-84314-00-XX
Bulb (12V-60/55W)
(h4)halogen |
5V2-84314-00-XX |
— | ||
|
08
|
08
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
(h4)halogen |
YMC-00903-00-00 |
— | ||
|
08
|
08
5VK-H4314-00-00 Bulb, Headlight(h4)halogen |
5VK-H4314-00-00 |
US $45.92 |
||
|
08
|
08
8V0-84314-10-00 Bulb, Headlight(h4)halogen |
8V0-84314-10-00 |
from US $45.92 |
||
|
09
|
09
4JG-84397-00-00 Cover, Socket |
4JG-84397-00-00 |
from US $14.17 |
||
|
10
|
10
5RS-84330-00-00 Body Assy |
5RS-84330-00-00 |
US $116.47 |
||
|
11
|
11
1JA-84338-00-00
Collar, Body Fitting
|
1JA-84338-00-00 |
— | ||
|
12
|
12
1JA-84345-00-00 Damper, Headlight |
1JA-84345-00-00 |
US $14.45 |
||
|
13
|
13
1M1-84164-60-00 Damper |
1M1-84164-60-00 |
from US $16.58 |
||
|
14
|
14
90157-05084-00 Screw, Pan Head |
90157-05084-00 |
from US $2.69 |
||
|
15
|
15
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
15
|
15
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
16
|
16
90179-06524-00 Nut |
90179-06524-00 |
from US $3.74 |
||
|
17
|
17
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
18
|
18
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
18
|
18
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
19
|
19
95024-08030-00 Bolt, Flange (Small Head) |
95024-08030-00 |
from US $1.66 |
||
