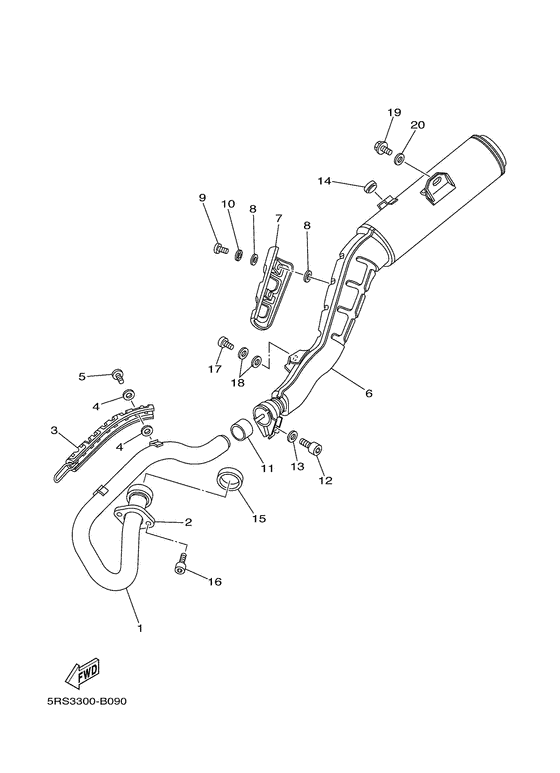

Exhaust Diagram Yamaha TW125
- Year
- 2004
- Colour
- Dark Violet Metallic A (DVMA; 0778)
- Model code
- 5RS6
- Sales region
- Germany (010)
- Engine Capacity
- 125
- Model
- TW125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2JX-14611-02-00 Pipe, Exhaust 1 |
2JX-14611-02-00 |
from US $109.01 |
||
| replacement | |||||
|
01
|
01
2JX-14611-03-00 |
2JX-14611-03-00 |
from US $55.21 |
||
|
02
|
02
5H0-14612-01-00 Nut, Ring |
5H0-14612-01-00 |
from US $11.19 |
||
|
03
|
03
5LB-14628-00-00 Protector, Exhaust Pipe |
5LB-14628-00-00 |
from US $50.43 |
||
| replacement | |||||
|
03
|
03
5LB-14628-01-00 |
5LB-14628-01-00 |
from US $50.43 |
||
|
04
|
04
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
05
|
05
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
06
|
06
2JL-14711-21-00 Muffler 1 |
2JL-14711-21-00 |
US $523.78 |
||
|
07
|
07
2JX-14728-00-00 Protector, Muffler 2 |
2JX-14728-00-00 |
from US $46.28 |
||
|
08
|
08
90202-05191-00 Washer, Plate(3Aj) J |
90202-05191-00 |
from US $1.70 |
||
|
09
|
09
989-07060-10-00 Screw, Binding |
989-07060-10-00 |
from US $1.56 |
||
|
10
|
10
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.70 |
||
|
11
|
11
3YF-14714-00-00 Gasket, Muffler |
3YF-14714-00-00 |
from US $20.25 |
||
|
12
|
12
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
13
|
13
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.39 |
||
|
14
|
14
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.89 |
||
|
15
|
15
4BE-14613-00-00 Gasket, Exhaust Pipe |
4BE-14613-00-00 |
from US $2.70 |
||
|
16
|
16
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
17
|
17
913-17080-16-00 Bolt |
913-17080-16-00 |
from US $1.42 |
||
|
18
|
18
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
18
|
18
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
19
|
19
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
19
|
19
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
20
|
20
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
20
|
20
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
