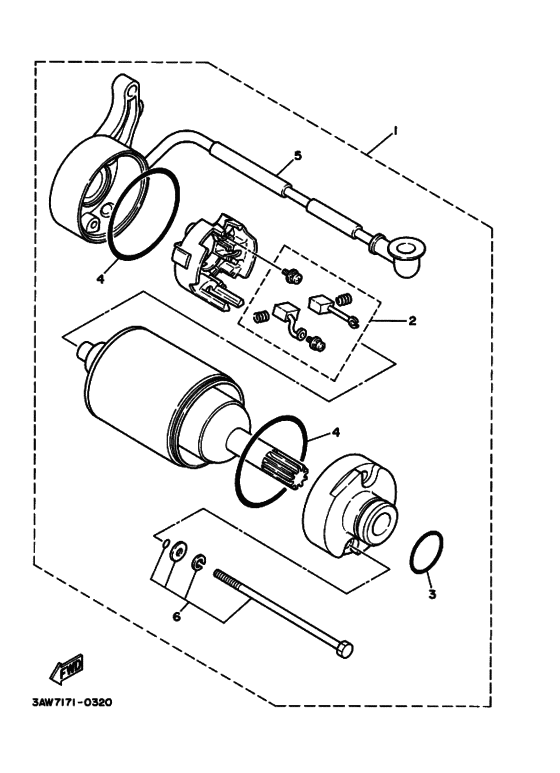

Starting motor Diagram Yamaha TW200
- Year
- 1995
- Colour
- French Blue (FBL; 00G3)
- Model code
- 3AWN
- Sales region
- Europe (010)
- Engine Capacity
- 200
- Color Variant
- A
- Model
- TW200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AW-81800-02-00 Motor Assy |
3AW-81800-02-00 |
from US $404.51 |
||
| replacement | |||||
|
1
|
1
3AW-81890-00-00 Motor Assy |
3AW-81890-00-00 |
from US $416.90 |
||
|
2
|
2
50M-81801-M0-00 Brush Set |
50M-81801-M0-00 |
from US $11.97 |
||
| replacement | |||||
|
2
|
2
3C5-81801-00-00 Brush Set |
3C5-81801-00-00 |
from US $9.94 |
||
|
3
|
3
93210-25711-00 O-Ring |
93210-25711-00 |
from US $3.59 |
||
|
4
|
4
93210-55669-00 O-Ring |
93210-55669-00 |
from US $2.39 |
||
|
5
|
5
2JX-8183G-M0-00
Cord Comp
|
2JX-8183G-M0-00 |
— | ||
| replacements | |||||
|
5
|
5
2JX-8183G-11-00
Cord Comp
|
2JX-8183G-11-00 |
— | ||
|
5
|
5
2JX-8183G-10-00
Cord Comp
|
2JX-8183G-10-00 |
— | ||
|
6
|
6
59V-81828-M0-00 Screw Set |
59V-81828-M0-00 |
from US $4.64 |
||
