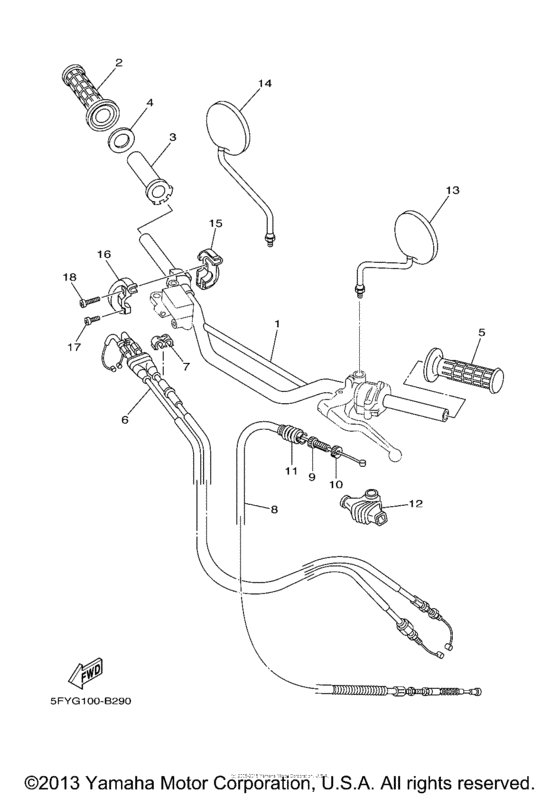

Steering handle & cable Diagram Yamaha TW200
- Year
- 2012
- Sales region
- USA
- Базовая модель
- TW200B1
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5LB-26111-00-00 Handlebar |
5LB-26111-00-00 |
from US $57.47 |
||
|
2
|
2
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $14.31 |
||
|
3
|
3
5BE-26243-00-00 Tube, Throttle Guide |
5BE-26243-00-00 |
from US $7.93 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $2.98 |
||
|
5
|
5
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $14.31 |
||
|
6
|
6
5LB-26302-02-00 Throttle Cable Assy |
5LB-26302-02-00 |
from US $44.80 |
||
| replacement | |||||
|
6
|
6
5LB-26302-03-00 THROTTLE CABLE ASSY |
5LB-26302-03-00 |
from US $58.59 |
||
|
7
|
7
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.70 |
||
|
8
|
8
5EK-26335-00-00 Cable, clutch |
5EK-26335-00-00 |
from US $30.18 |
||
|
9
|
9
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
9
|
9
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
11
|
11
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
12
|
12
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $5.64 |
||
|
13
|
13
3Y1-26290-10-00 Back Mirror Assy (L.h) |
3Y1-26290-10-00 |
from US $32.73 |
||
| replacements | |||||
|
13
|
13
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $35.99 |
||
|
13
|
13
5Y1-26290-11-00 MIRROR ASSY., 2 |
5Y1-26290-11-00 |
from US $35.99 |
||
|
14
|
14
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $16.20 |
||
|
15
|
15
3LN-26281-01-00 Cap, Grip Upper |
3LN-26281-01-00 |
from US $28.76 |
||
|
16
|
16
3LN-26282-01-00 Cap, Grip Lower |
3LN-26282-01-00 |
from US $28.76 |
||
|
17
|
17
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
18
|
18
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
