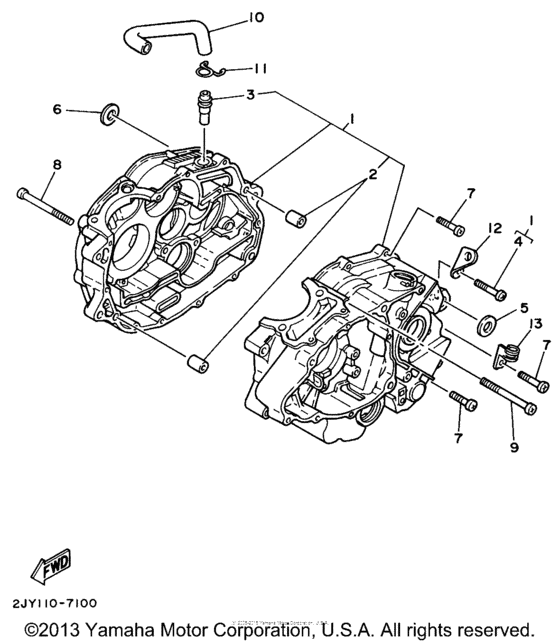

Crankcase Diagram Yamaha TW200
- Year
- 1996
- Sales region
- USA
- Базовая модель
- TW200HC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3AW-15100-00-00
Crankcase Assy
|
3AW-15100-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99030-70-00
element
|
999-99030-70-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
3
|
3
371-11167-01-00 Pipe, Breather 2 |
371-11167-01-00 |
from US $8.36 |
||
|
4
|
4
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
5
|
5
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
6
|
6
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
7
|
7
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
8
|
8
98507-06090-00 Screw, Pan |
98507-06090-00 |
from US $1.34 |
||
|
9
|
9
98507-06085-00 Screw, Pan Head |
98507-06085-00 |
from US $3.97 |
||
|
10
|
10
3Y1-11166-00-00 Pipe, Breather 1 |
3Y1-11166-00-00 |
from US $11.05 |
||
|
11
|
11
90467-14015-00 Clip |
90467-14015-00 |
from US $1.70 |
||
|
12
|
12
90465-08200-00 Clamp |
90465-08200-00 |
from US $3.83 |
||
|
13
|
13
90462-06080-00 Clamp |
90462-06080-00 |
from US $6.66 |
||
