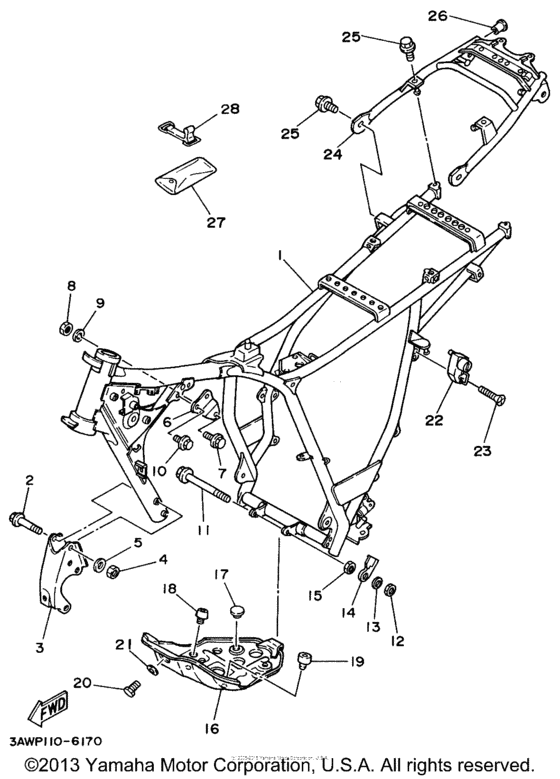

Frame Diagram Yamaha TW200
- Year
- 1996
- Sales region
- USA
- Базовая модель
- TW200HC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2YG-21110-00-G3
Frame Comp
UR FRENCH BLUE 0G3 NON-CA |
2YG-21110-00-G3 |
— | ||
|
1
|
1
3AW-21110-00-G3
Frame Comp
UR FRENCH BLUE 0G3 CA |
3AW-21110-00-G3 |
— | ||
|
2
|
2
95817-08065-00 Bolt, Flange |
95817-08065-00 |
from US $5.10 |
||
| replacements | |||||
|
2
|
2
90105-084A1-00 Bolt, Flange |
90105-084A1-00 |
from US $5.10 |
||
|
2
|
2
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
3
|
3
1RL-21316-00-G3
Stay, Engine 3
UR FRENCH BLUE 0G3 NON-CA |
1RL-21316-00-G3 |
— | ||
|
3
|
3
2JX-21316-00-G3
Stay, Engine 3
UR FRENCH BLUE 0G3 CA |
2JX-21316-00-G3 |
— | ||
|
4
|
4
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
4
|
4
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
5
|
5
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
6
|
6
2JX-21315-00-00 Stay, Engine 1 |
2JX-21315-00-00 |
US $8.66 |
||
|
7
|
7
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.56 |
||
|
8
|
8
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
8
|
8
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
9
|
9
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
10
|
10
90105-08177-00 Bolt, Washer Based (4W5) |
90105-08177-00 |
from US $3.68 |
||
| replacements | |||||
|
10
|
10
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.34 |
||
|
10
|
10
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
11
|
11
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
12
|
12
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
13
|
13
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
14
|
14
1RL-21337-00-00 Clamp, Cable |
1RL-21337-00-00 |
from US $4.34 |
||
|
15
|
15
90185-08055-00 Nut, Self-Locking |
90185-08055-00 |
from US $1.35 |
||
| replacement | |||||
|
15
|
15
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
16
|
16
1RL-21471-00-35 Protector, Engine035 |
1RL-21471-00-35 |
from US $49.18 |
||
|
17
|
17
128-27114-00-00 Stopper, Main Stand |
128-27114-00-00 |
from US $4.68 |
||
|
18
|
18
34L-21485-00-00 Damper, Rubber 1 |
34L-21485-00-00 |
from US $8.78 |
||
|
19
|
19
4N0-27114-00-00 Stopper, Main Stand |
4N0-27114-00-00 |
from US $4.53 |
||
|
20
|
20
97007-06016-00 Bolt |
97007-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
20
|
20
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
21
|
21
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
22
|
22
26H-21308-00-00
Helmet Hanger Assy
|
26H-21308-00-00 |
— | ||
| replacement | |||||
|
22
|
22
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
23
|
23
90151-06038-00 Screw, Countersunk |
90151-06038-00 |
from US $1.98 |
||
| replacement | |||||
|
23
|
23
90149-06150-00 Screw, Countersunk |
90149-06150-00 |
from US $1.98 |
||
|
24
|
24
2JX-21190-00-G3
Rear Frame Comp
0G3 |
2JX-21190-00-G3 |
— | ||
|
25
|
25
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
25
|
25
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
26
|
26
90338-12081-00 Plug |
90338-12081-00 |
from US $2.57 |
||
| replacement | |||||
|
26
|
26
90605-50201-00 Plug(Eu0) |
90605-50201-00 |
from US $3.54 |
||
|
27
|
27
2JX-28100-00-00 Tool Kit |
2JX-28100-00-00 |
from US $51.06 |
||
|
28
|
28
3TJ-82131-00-00 Band, Battery |
3TJ-82131-00-00 |
from US $9.92 |
||
