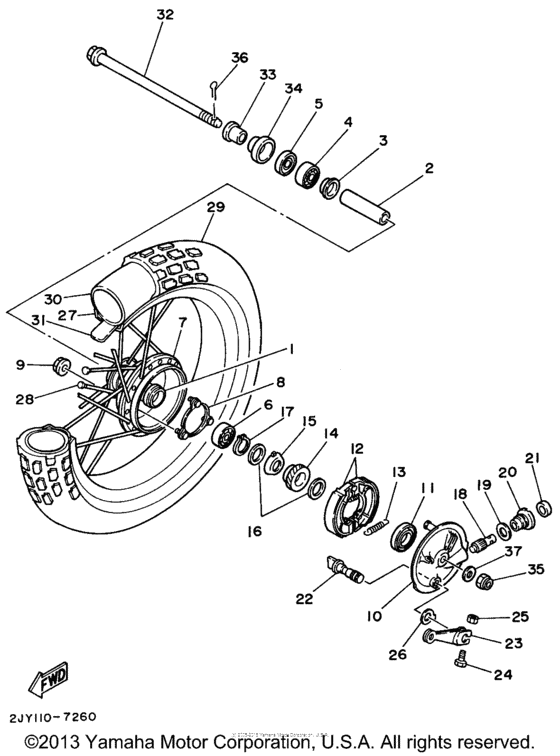

Front wheel Diagram Yamaha TW200
- Year
- 1996
- Sales region
- USA
- Базовая модель
- TW200HC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2JX-25111-00-00 Hub, Front |
2JX-25111-00-00 |
from US $160.40 |
||
|
2
|
2
2JX-25117-00-00 Spacer, Bearing |
2JX-25117-00-00 |
from US $11.02 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
4
|
4
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
4
|
4
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
5
|
5
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
6
|
6
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.88 |
||
|
7
|
7
2JX-2511E-00-35
Drum, Brake
035 |
2JX-2511E-00-35 |
— | ||
|
8
|
8
54G-25185-00-00 Ring 1 |
54G-25185-00-00 |
from US $23.09 |
||
|
9
|
9
90179-08410-00 Nut |
90179-08410-00 |
from US $1.70 |
||
|
10
|
10
3Y1-25121-01-35 Plate, Brake Shoe035 |
3Y1-25121-01-35 |
from US $78.64 |
||
|
11
|
11
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $5.64 |
||
|
12
|
12
3LS-W2536-00-00
Brake Shoe Kit
|
3LS-W2536-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3LS-W253E-00-00 Brake Shoe Kit |
3LS-W253E-00-00 |
from US $35.14 |
||
|
13
|
13
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
14
|
14
214-25135-00-00 Gear, Drive |
214-25135-00-00 |
from US $44.64 |
||
|
15
|
15
214-25149-01-00 Clutch, Meter |
214-25149-01-00 |
from US $9.36 |
||
|
16
|
16
90201-22283-00 Washer, Plate |
90201-22283-00 |
from US $1.56 |
||
|
17
|
17
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
18
|
18
214-25138-00-00 Gear, Meter |
214-25138-00-00 |
from US $22.34 |
||
|
19
|
19
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
20
|
20
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
21
|
21
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
22
|
22
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
22
|
22
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
23
|
23
3Y1-25155-01-00 Lever, Camshaft 1 |
3Y1-25155-01-00 |
from US $26.59 |
||
|
24
|
24
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
25
|
25
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
25
|
25
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
26
|
26
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
26
|
26
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
27
|
27
94425-18446-00 Rim (2.50-18)2.50-18 |
94425-18446-00 |
US $378.72 |
||
|
28
|
28
2JX-25104-00-00
Spoke Set, Front
|
2JX-25104-00-00 |
— | ||
|
29
|
29
941-13184-R7-00 Tire (130/80-18 M/c 66P Tw31)Tire (66p 130/80-18 tw31 am) 130/80-18 M/C 66P TW31 BRIDGESTONE |
941-13184-R7-00 |
US $246.17 |
||
|
30
|
30
94213-18232-00 Tube (130/80-18 M/c Tr4)130/80-18 M/C TR4 BRIDGESTONE |
94213-18232-00 |
US $38.10 |
||
| replacement | |||||
|
30
|
30
94212-18188-00 Tube (110-140/80-100-18 M/c)Tube 130/80-18 M/C TR4 BRIDGESTONE |
94212-18188-00 |
US $39.29 |
||
|
31
|
31
94340-18086-00 Band, Rim (2.50-18)2.50-18 BRIDGESTONE |
94340-18086-00 |
from US $4.39 |
||
|
32
|
32
2JX-25181-00-00 Axle, Wheel |
2JX-25181-00-00 |
from US $34.99 |
||
|
33
|
33
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
34
|
34
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
35
|
35
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
36
|
36
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
36
|
36
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
37
|
37
90201-15785-00 Washer, Plate |
90201-15785-00 |
from US $2.27 |
||
