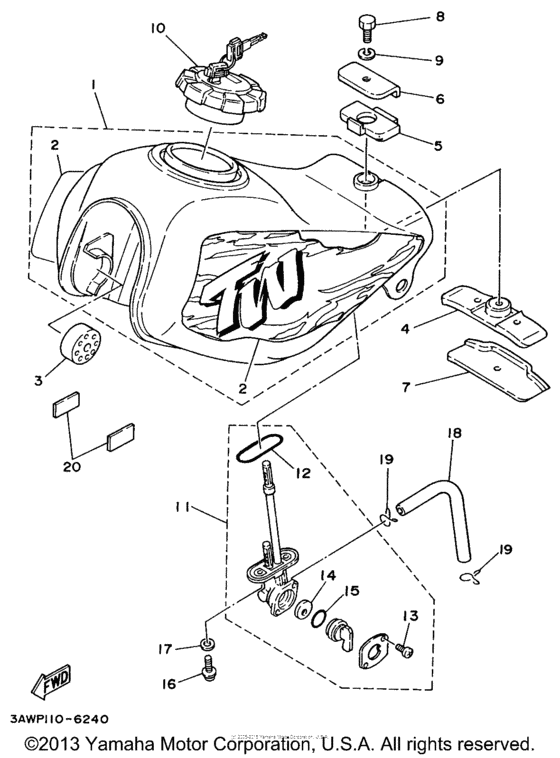

Fuel tank Diagram Yamaha TW200
- Year
- 1996
- Sales region
- USA
- Базовая модель
- TW200HC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2JY-24110-00-X3
Fuel Tank Comp
206 |
2JY-24110-00-X3 |
— | ||
| replacement | |||||
|
1
|
1
2JY-Y2410-10-X8
FUEL TANK COMP.
206 |
2JY-Y2410-10-X8 |
— | ||
|
2
|
2
3AW-24240-30-00
Graphic, Set
|
3AW-24240-30-00 |
— | ||
|
3
|
3
4L0-24181-00-00 Damper, Locating 1 |
4L0-24181-00-00 |
from US $8.93 |
||
|
4
|
4
30X-24182-01-00 Damper, Locating 2 |
30X-24182-01-00 |
from US $10.91 |
||
|
5
|
5
30X-24183-01-00 Damper, Locating 3 |
30X-24183-01-00 |
from US $8.08 |
||
|
6
|
6
30X-24186-01-00 Washer, Special |
30X-24186-01-00 |
from US $3.68 |
||
|
7
|
7
30X-24187-00-00 Washer, Special |
30X-24187-00-00 |
from US $14.31 |
||
|
8
|
8
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
10
|
10
48Y-24602-00-00 Cap Assy |
48Y-24602-00-00 |
from US $125.73 |
||
|
11
|
11
23F-24500-01-00
Fuel Cock Assy 1
|
23F-24500-01-00 |
— | ||
| replacement | |||||
|
11
|
11
23F-24500-20-00 Fuel Cock Assy 1 |
23F-24500-20-00 |
from US $31.03 |
||
|
12
|
12
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
13
|
13
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
14
|
14
3AJ-24523-00-00
Valve Packing
|
3AJ-24523-00-00 |
— | ||
| replacement | |||||
|
14
|
14
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
15
|
15
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
15
|
15
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
16
|
16
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
17
|
17
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
18
|
18
90445-10638-00 Hose (L110) |
90445-10638-00 |
from US $3.68 |
||
| replacement | |||||
|
18
|
18
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $3.68 |
||
|
19
|
19
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
19
|
19
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
20
|
20
18A-21778-00-00 Protector, Fuel Tank |
18A-21778-00-00 |
from US $2.13 |
||
