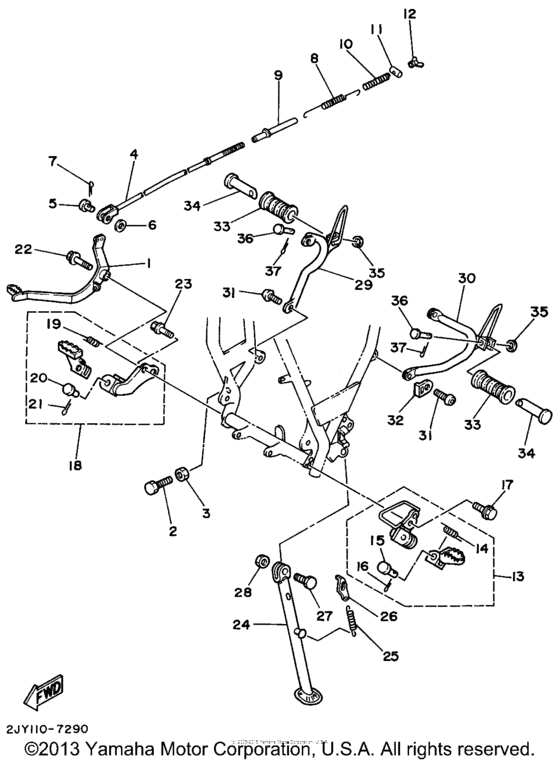

Stand & Footrest Diagram Yamaha TW200
- Year
- 1996
- Sales region
- USA
- Базовая модель
- TW200HC
- Engine Capacity
- 200
- Model
- TW200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2JX-27211-00-90 Pedal, Brake |
2JX-27211-00-90 |
from US $46.84 |
||
|
2
|
2
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
2
|
2
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
3
|
3
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
4
|
4
2JX-27231-00-00 Rod, Brake |
2JX-27231-00-00 |
from US $9.07 |
||
|
5
|
5
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
6
|
6
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
7
|
7
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
8
|
8
90506-18289-00 Spring, Tension |
90506-18289-00 |
from US $5.24 |
||
|
9
|
9
1M1-27244-00-00 Cover |
1M1-27244-00-00 |
from US $5.38 |
||
|
10
|
10
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
11
|
11
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
12
|
12
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
13
|
13
2JX-27410-00-90 Front Footrest Assy (Left) |
2JX-27410-00-90 |
from US $59.96 |
||
|
14
|
14
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
15
|
15
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
16
|
16
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
17
|
17
95827-12025-00 Bolt, Flange |
95827-12025-00 |
from US $2.55 |
||
| replacement | |||||
|
17
|
17
95817-12025-00 Bolt, Flange |
95817-12025-00 |
from US $2.55 |
||
|
18
|
18
15A-27420-01-90 Front Footrest Assy (Right) |
15A-27420-01-90 |
from US $65.21 |
||
| replacement | |||||
|
18
|
18
15A-27420-02-90 Front Footrest Assy (Right) |
15A-27420-02-90 |
from US $75.99 |
||
|
19
|
19
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
20
|
20
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
21
|
21
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
22
|
22
958-17100-35-00 Bolt, Flange |
958-17100-35-00 |
from US $1.56 |
||
| replacements | |||||
|
22
|
22
90105-10115-00 Bolt, Flange |
90105-10115-00 |
from US $6.52 |
||
|
22
|
22
90105-10289-00 Bolt, Washer Based |
90105-10289-00 |
US $6.52 |
||
|
23
|
23
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
24
|
24
2JX-27311-02-00 Stand, Side |
2JX-27311-02-00 |
from US $58.99 |
||
|
25
|
25
90506-29360-00 Spring,tension |
90506-29360-00 |
from US $6.30 |
||
| replacement | |||||
|
25
|
25
4KN-27116-00-00 Spring, Main Stand |
4KN-27116-00-00 |
from US $12.58 |
||
|
26
|
26
5Y1-27315-00-00 Link, Side Stand |
5Y1-27315-00-00 |
from US $10.63 |
||
|
27
|
27
90109-103A1-00 Bolt |
90109-103A1-00 |
from US $3.54 |
||
| replacement | |||||
|
27
|
27
90109-10473-00 Bolt |
90109-10473-00 |
from US $3.54 |
||
|
28
|
28
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $3.83 |
||
|
29
|
29
2JX-27442-00-33 Bracket 2YAMAHA BLACK 033 |
2JX-27442-00-33 |
from US $56.92 |
||
| replacement | |||||
|
29
|
29
2JX-27442-11-00 Bracket 2YAMAHA BLACK 033 |
2JX-27442-11-00 |
from US $56.92 |
||
|
30
|
30
26F-27432-00-33 Bracket 1YAMAHA BLACK 033 |
26F-27432-00-33 |
from US $60.95 |
||
| replacement | |||||
|
30
|
30
26F-27432-10-00 Bracket 1YAMAHA BLACK 033 |
26F-27432-10-00 |
from US $60.95 |
||
|
31
|
31
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.56 |
||
|
32
|
32
2JX-27437-00-00 Washer, Special |
2JX-27437-00-00 |
from US $1.84 |
||
|
33
|
33
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.32 |
||
|
34
|
34
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $6.30 |
||
|
35
|
35
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
36
|
36
90240-06009-00 Pin |
90240-06009-00 |
from US $1.56 |
||
| replacement | |||||
|
36
|
36
91701-06032-00 Pin |
91701-06032-00 |
from US $1.56 |
||
|
37
|
37
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
